Model 62-9/62T-9/9500 Integral Thermal Mass Probe Flowmeter

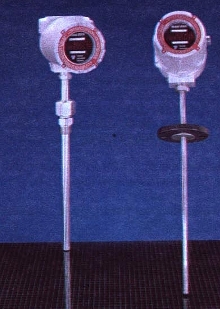

The Thermal Instrument Model 62-9 Mass Probe Flowmeter With Integral 9500 Microprocessor Electronics brings an element of versatility to Mass Flow Measurement of Liquids and Gases.
A uniquely designed microprocessor controlled electronics provides integral local control and display in an explosion proof housing. Optional Remote Mounting of the electronics to a distance of 4000 ft provides additional versatility depending on the application.
Flow signal linearity and temperature effects, determined at calibration, are corrected by the microprocessor using operating parameter data stored in EEPROM memory.
DESIGN FEATURES
> Unobstructed Flow Tube with Non-wetted Sensors mounted on the Inner Surface of the flow tube of the Insertion Probe Design permits measurement of Gases, Liquids and Slurries.
> Wide Selection of Probe Materials: 316 SS is standard. Corrosion resistant materials such as Hastelloy C, Monel, Inconel, Carpenter 20 as well as carbide and fluorocarbon coatings are available.
> Hi Temperature designs to 1000 F.
>Wide Flow Range on Gases is greater than 100:1
> Vent Flow Measurement at near atmospheric conditions and low flow.
> Rate and Totalizer Ultra-bright LED display
> NIST Traceable Calibration on user gases and liquids. Calibration in user piping configurations
> Isolated Fluid Temperature Signal, 4-20MA from an RTD Sensor on the Flow Tube.
> Multi sensor Design for large ducts and stacks
> Electronics suitable for Remote Mount to 4000 ft.
> Totalizer Data is stored in the EEPROM memory on power loss and restored on startup. No batteries required.
ENGINEERING SPECIFICATIONS
Accuracy:
+/-.75% of Rate, over the calibrated range
[Process fluid temperature span +/- 10 F]
+/-.50% of Full Scale, 2.0% of Rate at 25% of Full Scale over the calibrated range.
[Process fluid temperature span +/- 50 F]
Repeatability: +/-.20% of Rate
Response Time:
Gases: 1 to 2 sec. Typical
Liquids: Less than 500ms.
Pressure Rating:
0 - 1200 psig (Std)
0 - 10000 psig Dependent on meter size
Mass Flowrates:
Gas: 40 to 50,000 SFPM
Liquid: .02 to 20 FPS
Note: maximum determined by pipe capacity.
Flow Range: 100:1 Std. Multiple ranges available.
Calibrated Temperature Range:
Gas: -20 F to 350 F (-28 to 162 C)STD.
[-20 F to 1000 F] (-28 C to 538 C) Optional).
Liquid: -20F to 350F (-28 to 162 C) STD.
[-20F to 500F](-28 to 269C ) Optional
Wetted Materials: 316SS (STD). Consult the factory for other material requirements.
Mounting: Flange, Packing Gland, Triclover, Hot Tap
Calibration Temperature Capability:
-20 TO 1000 F (-29 to 538 C)
MICROPROCESSOR SPECIFICATIONS:
EEPROM Memory: 64K
Displays: 8 digit Flowrate and Totalizer (Optional)
Communicator:
Interface: RS-232 via Ribbon Connector
Baud Rate: 9600
Adjustable Variables with RS-232 Communicator:
Zero Cutoff; Zero Offset
Filter Factor
Flow Full Scale
Flow Rate Decimal Point
Flow Totalizer Decimal Point
Flow Totalizer/Flowrate Ratio
Power: 120/240 vac, 50/60 Hz.
24VDC, 1 Amp (Factory Set)
Electrical Connections: 3/4" FNPT Power & Signal
Enclosure: Cast Aluminum, Epoxy Painted
Environmental Ratings:
Housing: Explosion Proof, Class 1, Div. 1, Groups, B, C D
Weatherproof: Nema 4
Ambient Temperature: -25 to 60 C (-13 to 140 F)
Storage Temperature: -40 to 70 C (-40 to 158F)
Mounting:
Integral to the Flow Transducer.
Remote to 4000 ft., Wall or Frame mount.
Signal Cable for Remote Design: 18 gauge, 2 pair
with cable shield. Maximum distance, 4000 ft.
MODEL NUMBERING SYSTEM:
Base Model: = 62-9/9500
Temperature Output: = 62T-9/9500
Electronics MOUNTING:
I = Integral Mount
R = Remote Mount
Fluid:
G = Gas
L = Liquid
Probe Size: ½ to 2" (See Sizing Tables for Gas and Liquid).
Material:
316SS = STD.
Other = Consult Factory
Process Connection:
PG = Packing Gland (Std.)
FLG-150 =150# RF Flange (Std.Van stone)
TC = Triclover
FLG-Other = Consult Factory
Other = Consult Factory
Power:
24 = 22-26 VDC, 1AMP, 4 WIRE
120 = 120VAC, 50/60 HZ (STD.)
240 = 240VAC, 50/60 HZ
Output Signals: (Select One**)
0/5 = 0-5 VDC**
0/10 = 0-10 VDC**
4/20 = 4-20MADC**into 750 ohms, Isolated std
4/20T = Optional Process Fluid Temp. 4-20MA. Not Loop Powered
Display: (Optional)
D = Flowrate Display, 8 Digit
8T = Totalizer
D/8T = Flowrate and Total Display, 8 digit
Signal Cable for Remote Design:
SC25 = 25 FT Supplied with remote configuration
