Manifold never exceeds transducer's pressure rating.
August 27, 2002 - Designed for differential pressure measurements of liquids and gases, 3-valve manifold for Model 230 differential pressure transducer works with line pressures to 250 psi. It weighs less than 2.5 lbs and measures 7.05 in. wide x 6.25 in. high. Construction includes brass body, brass pipe fittings, copper tubing, and plastic valves.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Setra Systems, Inc.
159 Swanson Rd.
Boxborough, MA, 01719
USA

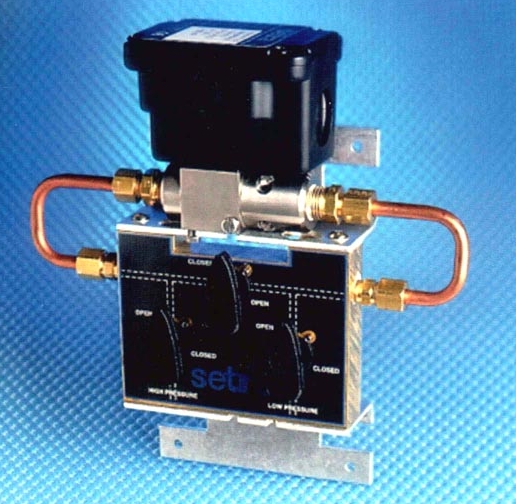

Setra Systems, Inc. Has Added An Optional Low Cost 3-Valve Manifold For The Model 230 Wet-To-Wet Differential Pressure Transducer
Boxborough, Mass. – Setra Systems, Inc. announces the addition of a low cost 3-valve manifold for the Model 230 differential pressure transducer designed for differential pressure measurements of liquids and gases.
The 3-valve manifold is rugged, lightweight and compact, weighing less than 2.5 pounds and measuring 7.05"Wide x 6.25"High. Its all brass body, brass pipe fittings, copper tubing and plastic valves are ideal for high line pressures of 250 psi.
System pressures are often higher than the differential pressure being measured. The 3-valve manifold eliminates the possibility of exceeding the pressure rating of the transducer. When combined with our Model 230 Wet-to-Wet Differential Pressure Transducer, the 3-valve manifold's one-piece, machined brass body construction guarantees a leak-free system and minimizes external pipe connections.
Designed for gas and liquid compatibility, the Model 230 Wet/Wet differential pressure transducer is ideal for process control, energy management systems in HVAC applications, flow measurement of liquids and gases, liquid level measurement of pressurized vessels and determining pressure drop across filters.
Setra Systems, Inc. is a designer, developer, and manufacturer of high accuracy electronic instrumentation, which measures pressure, acceleration, and weight. Setra's products are used by many process and manufacturing industries, federal agencies, and research laboratories. In addition, all of Setra's pressure transducers are CE compliant.
For further details on the enhanced 230 wet/wet differential pressure transmitter or Setra's complete product line, contact Setra Systems, Inc., 159 Swanson Road, Mail Stop 14-26, Boxborough, MA 01719; call 1-800-257-3872, fax: 508-264-0292 or e-mail: sales@setra.com. Visit Setra on the World Wide Web at http://www.setra.com.
|
|
|
|
|
|
|
|
