Mag Actuator is suited for switchgear applications.
Press Release Summary:
Bi-Directional Latching Actuator can be customized to work in various switchgear applications. Suited to vacuum switchgear applications, product offers remote actuation, 2-position permanent magnet latching features that prevent demagnetization, and electromechanical design with no linkages/springs required. Unit requires 25 joules or less per unlatch for 15.5 KV vacuum bottles. Operation time is typically less than 2 cycles.
Original Press Release:

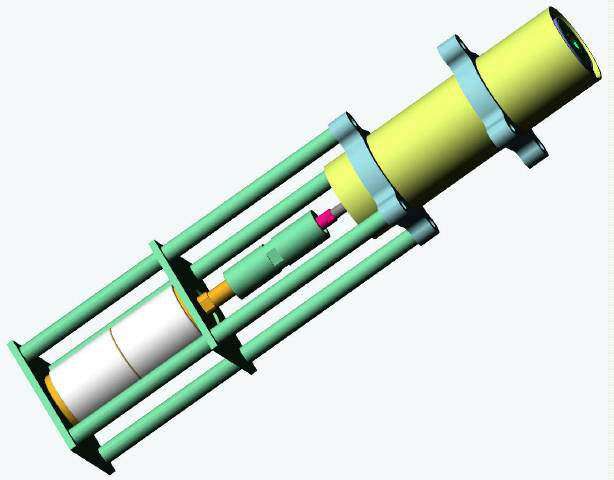

Trombetta's New Mag Actuator Simplifies Switchgear Design
Milwaukee, WI - Trombetta Motion Technologies' new Bi-Directional Latching Actuator brings both increased flexibility and simplicity to switchgear applications. This unique actuator can be customized to work in most types of switchgear applications - vacuum switchgear applications in particular.
Performance benefits include:
o Simplified remote actuation - extend or retract possible with only two electrical inputs.
o Zero power required to hold - two-position permanent magnet latching features to prevent demagnetization.
o Simplified electromechanical design - powerful actuation and latching forces enable direct contact loading. No linkages or springs required.
o Very low amount of energy required per unlatch, actuate and relatch cycle - typically 25 joules or less for a 15.5 KV vacuum bottle.
o Fast operation - typically less than two cycles.
o Easy to retrofit to existing switchgear designs
1. Compact design.
2. Velocities aligned with vacuum bottle requirements.
3. Strokes, actuation forces and latching design can be customized.
Additionally, Trombetta's experienced engineering group will work with switchgear manufacturers to define and execute custom application requirements. Actuation solutions are then developed to meet or exceed these requirements.
A customized interface will also be produced to adapt the existing manual and automatic controls to work with the Trombetta actuator. The end result is a more efficient and flexible switchgear function based on ground-breaking technology.
To learn more about the benefits of the Bi-Directional Latching Actuator, please contact Stacy Sickinger of Trombetta Motion Technologies at (262) 251-5454 or visit our website at trombetta.com/switch.htm
