MIL Spec Fanless Computer operates in extended temperatures.
February 29, 2012 -
Supplied chassis measuring less than 1.5 in. thick, AU115 is powered by Intel® Atom(TM) N270 processor and offers reliable computing over -20 to +60°C range. Lack of fans or vent openings protect unit from exposure to dust, dirt, and grime on factory floors or in mobile environments. Rated MIL-STD 810F to withstand vibration and shock, unit weighs less than 2 lb, can be configured with solid state device for storage, and offers diverse I/O connectivity.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Logic Supply
35 Thompson Street
South Burlington, VT, 05403
USA

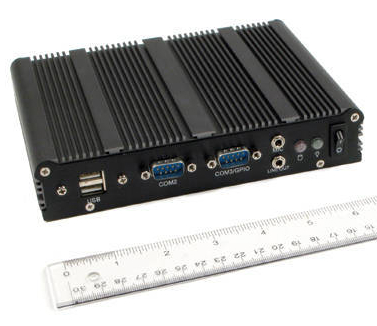

Small, Fanless System with Extended Temperature Range and MIL-STD810F Rating
Logic Supply, a leading provider of specialized systems for industrial and embedded applications, introduces the LGX Extended Temperature AU115 Atom System. It features an Intel Atom N270 processor housed in a small footprint, low-profile chassis less than 1.5" thick. The AU115 system offers reliable computing in an operating temperature environment of -20°C ~ 60°C and is easily mountable, making it ideal for deployment in remote monitoring, outdoor kiosks, data acquisition, and networking applications.
With no fans or vent openings, the AU115 is protected from exposure to the dust, dirt, and grime that are typically found on the factory floor or in a mobile environment. It is MIL-STD 810F rated to withstand vibration and shock, and can be configured with a solid state device for storage to extend the lifetime of the system and ensure data integrity.
For I/O connectivity, the AU115 provides two RS-232 COM ports (one of which can be used as GPIO), an RS-232/422/485 port, four USB 2.0 ports, DVI-I, dual Intel Gb LAN ports, two audio jacks, and a 12-volt DC power jack. It supports a 2.5" notebook SATA HDD or SSD, up to two GB RAM, and Wi-Fi via a PCIe Mini Card slot. It also has an integrated watchdog timer and comes standard with L-shaped mounting brackets. Weighing less than two pounds, this system offers plenty of versatility without adding any bulk.
Tony Fiset, Product Manager at Logic Supply, explains what makes the AU115 unique among other low-power Intel Atom Systems: "There are a lot of fanless N270-based systems on the market, but what sets the AU115 apart is its ability to withstand environments with a wide temperature range while still maintaining a remarkably compact footprint. This combination of compactness and wide temperature operation allows the AU115 to be deployed in space-constrained installations that require enhanced vibration and thermal tolerances."
The LGX AU115 is available from Logic Supply: www.logicsupply.com/au115
About Logic Supply
Logic Supply is a specialized systems provider serving the embedded and industrial computing market with custom engineered solutions. With locations in USA, Europe, and Asia, Logic Supply provides pre-configured small form factor systems, the most comprehensive selection of compatible components, and unique computer hardware. Logic Supply offers engineering services and turnkey assembly for OEM customers and custom OS development for Windows Embedded Standard and Linux platforms. Visit the Logic Supply USA website at www.logicsupply.com or EU site at www.logicsupply.eu.
|
|
|
|
|
|
|
|
