Loop Calibrator has rugged, handheld design.
April 16, 2010 -
Designed to meet test and calibration needs in field and laboratory, MultiCal 15 can measure DC voltage up to 55 V, DC current up to 50 mA, and frequency up to 50 kHz with accuracy of ±0.02% reading + LSD. Simulation capabilities, respectively, cover up to 10 V, 20 mA, and 10 kHz. Also able to perform continuity tests and provide loop supply (24 V) for transmitter, handheld tool features 5-digit LCD for measurement values and 6-digit LCD for simulation values.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
E Instruments International LLC
172 Middletown Blvd., Suite B 201
Langhorne, PA, 19047
USA

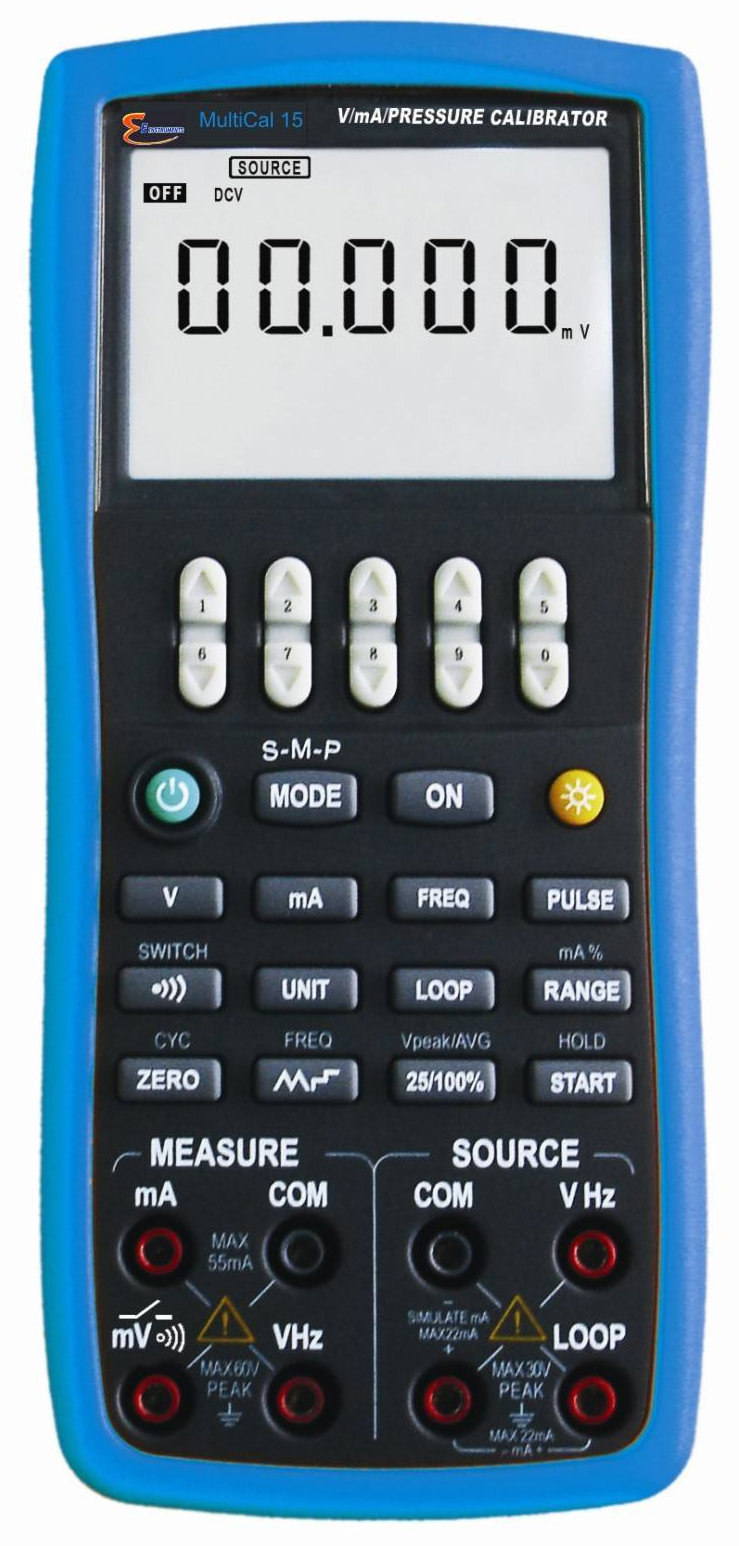

Multical 15 Hand-Held Loop Calibrator
SPECIFIC FEATURES OF THE MULTICAL 15:
Accuracy: ±0.02% rdg. + LSD
Calibration Certification Included
Handheld, Rugged & Sturdy
Light Weight & Efficient
Measure DC Voltage up to 55V
Simulate DC Voltage up to 10V
Capability to Provide Loop Supply (24V) for Transmitter
5 digit display for Measurement values and 6 digit display for Simulation values
Dual Liquid Crystal Display with white LED for back-light
User selectable auto power-off
Capability to Perform Continuity Tests
Measure DC Current up to 50mA
Simulate DC Current up to 20mA
Measure Frequency up to 50KHz
Simulate Frequency up to 10KHz
The MultiCal 15 is compact, rugged hand-held mA/V (Loop) calibrator that can Measure & Simulate DC Voltage, DC Current, & Frequency. The MultiCal 15mA/V(Loop) calibrator is designed to meet your test and calibration needs both in the field and laboratory.
|
|
|
|
|
|
|
|
