Liquid Crystal Display features white LED backlighting.
April 13, 2004 - Model F-51405GNB-LW-AJ monochrome transmissive LCD displays white characters or graphics on blue background. It has luminance of 120 nits minimum over surface of panel and is backlit by 8 high-bright white LEDs. Measuring 149.5 x 51.7 x 9.8 mm with viewing area of 130.2 x 36.7 mm, module features 8-bit parallel data transfer interface, 5:1 contrast ratio, 240 x 64 dot pixel resolution, and total power consumption of 615 mW.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Optrex America, Inc.
46723 Five Mile Rd.
Plymouth, MI, 48170
USA
Industry Standard 5.2-Inch 240x64 Pixel LCD from Optrex Features White LED Backlighting

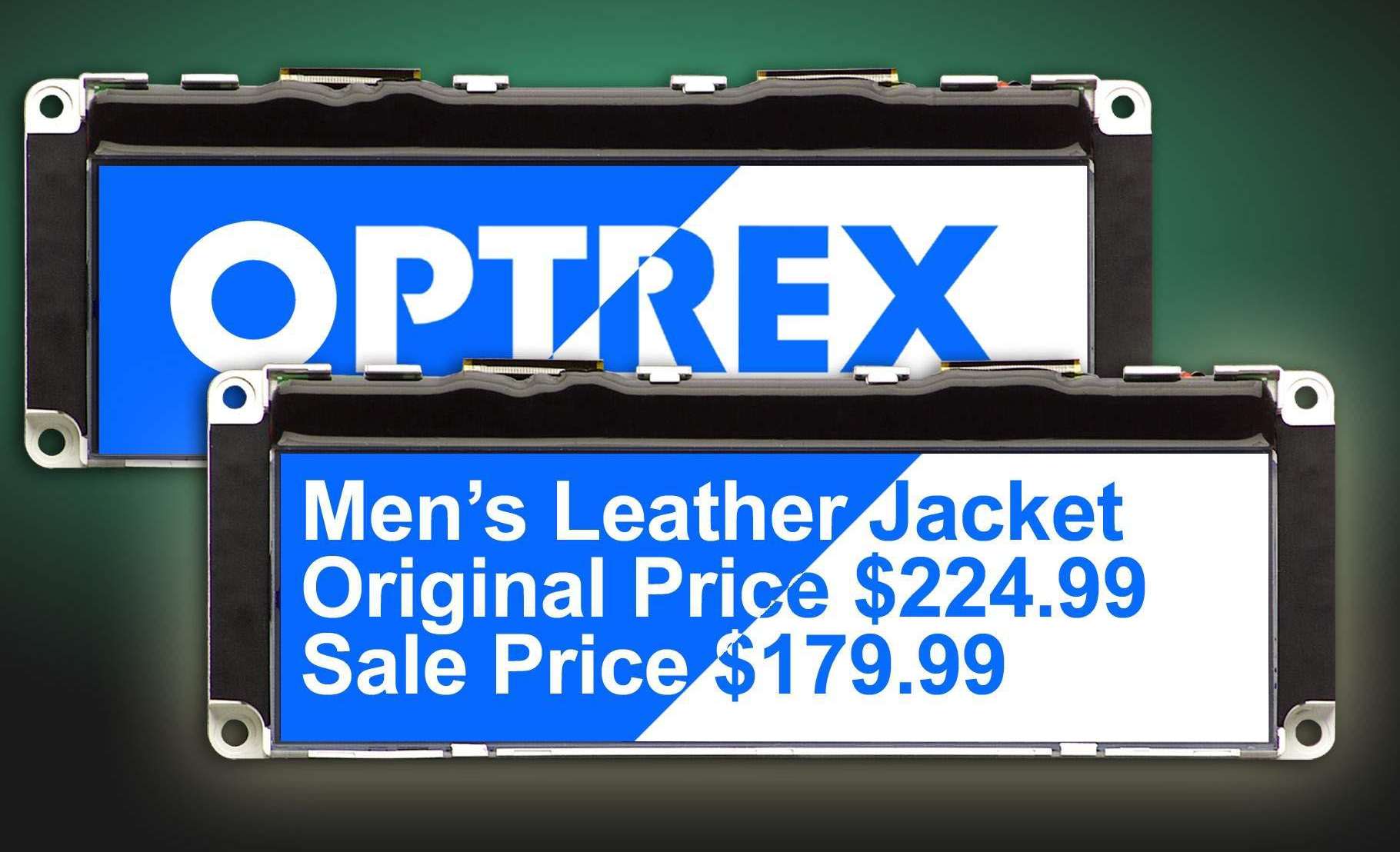

Plymouth, MI, April 2004 – Optrex America has introduced an ultra-compact monochrome transmissive STN LCD that displays white characters or graphics on a blue background with an industry standard outline. The F-51405 Series 5.2-inch diagonal module offers high brightness and features economical chip-on-glass (COG) construction with ease of integration. It is ideal for POS terminals, price checkers, musical instruments, audio equipment, and a wide range of industrial applications including process instrumentation, diagnostic devices and factory automation equipment.
The F-51405GNB-LW-AJ module has a luminance of 120 nits (cd/m²) minimum over the surface of the panel, and is backlit by eight high-bright white LEDs (four on each side). It has a resolution of 240x64 dot pixels and can display text or graphics or both in a wide range of configurations.
Operating temperature range is 0 to 50°C. This lightweight (95 g) module measures a compact 149.5 mm W x 51.7 mm H x 9.8 mm D, with a viewing area of 130.2 mm W x 36.7 mm H, yet still matches the industry standard for 240x64 LCD panels. It has an 8-bit parallel data transfer interface, with a 5:1 contrast ratio and a total power consumption of 615 mW (including LCD and backlight).
The module’s high level of component integration saves engineers valuable design, sourcing, debug and set-up time. It incorporates a backlight as well as mounting features, and an LCD controller driver with built-in RAM.
Pricing for the F-51405GNB-LW-AJ 5.2-inch diagonal module is $42.04 in OEM quantities. For details on pricing and delivery, contact Optrex America, Inc.
For more information, contact John Cramer at Optrex America, Inc., 46723 Five Mile Road, Plymouth, MI 48170. Tel: 734-416-8500; Fax: 734-416-8520; E-mail: jcramer@optrexusa.com; Web: www.optrex.com.
Optrex is a world leader in the design and manufacture of OEM liquid crystal displays (LCDs) for an expanding line of products that includes displays for telecommunications and non-PC Internet devices; test, measurement and diagnostic instruments; handheld data management equipment; and automotive and avionics displays. Founded in 1976, Optrex has followed an aggressive policy of growth and expansion and now serves customers through an extensive in-field network of applications engineers and more than 100 sales and distribution offices throughout the world. The Optrex technology palette includes Active-MLA (multi-line addressing), TFT (thin film transistor), VHC (very high contrast), STN (super twisted nematic), HPC (high performance color) for car audio applications, TFCC (trim fine crystal color) for color mobile products, and OLED (organic light emitting diode).
|
|
|
|
|
|
|
|
