Linear Rail Systems feature 180° folded-over motorized design.
November 1, 2011 -
Using aluminum pulleys and fiberglass reinforced neoprene timing belt, Kerk® RGS/RGW Linear Rail Systems offer drive ratios of 2:1, 1:1, and 1:2 and screw leads from 0.050-1.2 in./rev. Splined aluminum guide rail and 303 SS lead screw have Kerkote® TFE coating, providing permanently lubricated surface. Maximum load capability of RGS is 35 lb in Z direction and 35 lb in hanging/gantry load position, and max roll and yaw moment is 3.25 lb-in. and max pitch moment is 5.66 lb-in.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
|Original Press release |
Haydon Kerk Motion Solutions
1500 Meriden Rd.
Waterbury, CT, 06705
Haydon Kerk Motion Solutions Introduces Folded-Over Motorized Linear Rail System

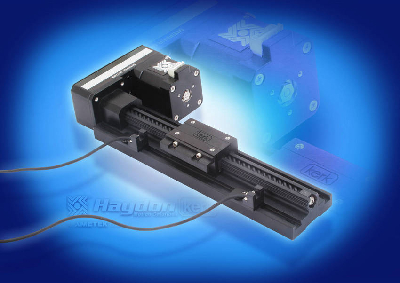

Waterbury, CT - The Kerk® RGS/RGW linear rail platform by Haydon Kerk Motion Solutions now includes a 180o folded-over motorized design. This design allows for a small footprint linear actuator system perfect for precision motion applications where space is at a premium.
The folded-over linear rail contains all the components needed for a complete motion subassembly, including the stepper motor, belt and pulley, precision lead screw, bearing supports, and rail with load carriage. The rail also contains the capability of mounting sensors within the integrated dovetail grooves. The standard drive ratios available from the motor to the screw are 2:1, 1:1, and 1:2, using lightweight aluminum pulleys and a fiberglass reinforced neoprene timing belt. Screw leads available range from 0.050 in/rev to 1.2 in/rev. When using a 2:1 ratio, a 0.050 in/rev lead screw, and a 200 step/rev stepper motor, a positioning resolution of 0.125 thousandths is possible. For high-speed applications, a 1:2 pulley ratio and a 1.2 in/rev lead screw provides a max speed of over 7 in/s.
All RGS and RGW linear rails feature standard wear-compensating anti-backlash driven carriages to insure repeatable and accurate positioning. The splined aluminum guide rail and 303 stainless steel lead screw is coated using Kerkote® TFE coating, providing a permanently lubricated surface. Maximum load capability of the folded-over motorized RGS is 35 lbs in the "Z" direction and 35 lbs in the hanging/gantry load position. Maximum "roll" and "yaw" moment is 3.25 in-lbs and maximum "pitch" moment is 5.66 in-lbs.
For information on the wide variety of other linear motion products from Haydon Kerk Motion Solutions, visit www.HaydonKerk.com.
About Haydon Kerk Motion Solutions, Inc.
Haydon Kerk Motion Solutions is a unit of AMETEK, Inc., a leading global manufacturer of electronic instruments and electromechanical devices with annualized sales of $3.0 billion. For more product information and CAD links, visit www.HaydonKerk.com or speak with an engineer to discuss a specific application by contacting Haydon Kerk at 203-756-7441.
Haydon Kerk Motion Solutions is the joining of two world-class brands in the field of linear motion: Haydon Switch and Instrument, Inc. and Kerk Motion Products, Inc. Together as Haydon Kerk Motion Solutions, they offer a wide range of high-performance and precision linear motion products.
Recognized as a leading manufacturer of stepper motor based linear actuators, rotary motors, lead screw assemblies, and linear rail and guide systems used in niche market applications, Haydon Kerk Motion Solutions has developed industry-renowned brands built upon its technical innovation, versatility, customization, product durability, and dedicated customer service.
