Linear Power Supply features encapsulated, PCB-mount design.
June 26, 2012 -
Measuring 2 x 3 x 1 in., Model 22-100 delivers tightly regulated ±15 V output providing ±100 mA of output current. Output noise is 2 mVrms, making device suited for power sensitive analog circuitry. Output voltage accuracy is ±0.5% and line/load regulation is ±0.04% max. Available with input voltage options of 100, 115, 220, 230, and 240 Vac, power supply operates from -25 to +50°C with input to output isolation voltage of 1,000 Vrms.
Original Press release
Calex Mfg. Co., Inc.
2401 Stanwell Dr.
Concord, CA, 94520
USA

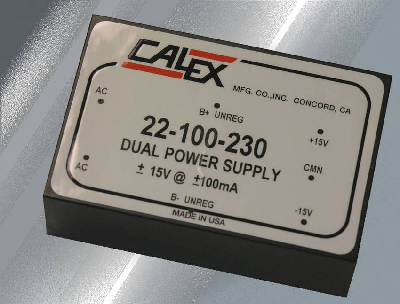

Encapsulated PCB Mount AC/DC Linear Supply
Calex Mfg. Co., Inc. of Concord California announces the Model 22-100 Linear Power Supply. The 22-100 provides a tightly regulated ±15 Volt output providing ±100mA of output current. The output noise for the 22-100 is low, 2mV RMS, making the unit ideal for powering sensitive analog circuitry. The compact 2" x 3" x 1"H unit is encapsulated with epoxy making it useful in a variety of environments.
The output voltage accuracy for the 22-100 is ±0.5%. Line and load regulation is ±0.04% maximum. The input voltage options are 100, 115, 220, 230 and 240VAC. The AC input frequency range is 50 to 60 Hz. The unit is isolated input to output with an isolation voltage of 1000V RMS. The isolation resistance is 50 megohms. The case operating temperature range for the 22-100 is -25 to +50°C. The temperature coefficient is ±0.01%/°C. All units are protected with foldback current limiting and are backed by Calex's Five Year Warranty.
For pricing or more information, contact Calex Mfg. Co., Inc. at 800-542-3355 or fax 925-687-3333. Units are available from stock to 6 weeks. For a complete data sheet on the Model 22-100 go to http://www.calex.com/pdf/submini.pdf or email instrumentation@calex.com. The Calex corporate address is 2401 Stanwell Drive, Concord, California 94520 USA. Calex has manufacturing facilities in both Concord California and Tijuana Mexico.
|
|
|
|
|
|
|
|
