Linear LED Lighting System suits surface grazing applications.
Share:
Press Release Summary:
Incorporating secondary optics, WashGrazeLV allows lighting designers to select up to 6 beam angles from 16-120° and 6 color temperatures from 2,700-6,300 K to illuminate or accent any architectural lighting application. Unit operates from 120-277 Vac without remote drivers, and consumes 17 W/ft while providing 850 lumens/ft and efficacy of 50 lumens/W. Available in 1, 2, 3, and 4 ft lengths, lighting fixture is IP66-rated for wet locations and suited for outdoor lighting effects.
Original Press Release:

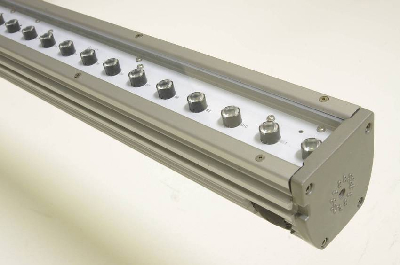

DDP Develops Low-Profile Linear LED Lighting System Optimized for Surface Grazing and Wall-Washing Applications
EL SEGUNDO, Calif. - DDP, a leader in engineered LED solutions, has developed a line voltage linear lighting fixture optimized for continuous surface grazing and wall-washing applications. Designated WashGrazeLV, the low-profile LED lighting fixture
offers seamless light quality and substantial energy savings for new installations and lighting retrofits requiring high-efficacy white light.
Part of the Emerge LED Lighting product family, the WashGrazeLV lighting system
incorporates highly efficient secondary optics that allow lighting designers to select up to six beam angles and six color temperatures to illuminate or accent any intricate architectural lighting application.
Designed to operate from 120VAC to 277VAC without remote drivers, the WashGrazeLV lighting fixture consumes only 17 watts per foot while providing upwards of 850
lumens per foot and efficacy of 50 lumens per watt. Utilizing single-bin high flux lighting class LED technology to produce seamless light, the WashGrazeLV lighting system exceeds efficacy standards established by the U.S. Department of Energy under its Energy Star program. The WashGrazeLV lighting fixture is IP66 rated for wet locations and is well-suited for a variety of outdoor lighting effects.
"We designed our WGLV lighting system in response to numerous requests from
specifiers for line-voltage LED lighting applications. Our challenge was to incorporate optics, high-efficacy LED technology and integral drivers into a small, linear mechanical design that is easy to mount and conceal. We designed this product to enable lighting designers to specify a long-life LED optical device that delivers the appropriate light color seamlessly and precisely where the designer needs it," said Tony Toniolo, DDP President.
The WashGrazeLV lighting fixture is a highly-customizable system available in a range
of color temperatures from 2700K to 6300K with six beam angles from 16 degrees to 120
degrees. The WashGrazeLV lighting system comes in 1ft, 2ft, 3ft, and 4ft lengths with flexible end-to-end molded connectors allowing continuous runs up to 266 linear feet. Advanced LED drive circuitry and thermal management ensure at least 70% lumens maintenance up to 50,000 hours. The WashGrazeLV lighting system's reliable performance and creative design makes it an ideal linear LED lighting solution for both forward-fit and retrofit lighting applications.
For more information, or to talk to one of DDP's LED engineering experts, contact DDP
at 445 South Douglas Street, El Segundo, California 90245; e-mail techsupport@ddpleds.com; call (800) 421-6815; or go to www.emergelighting.com.
About DDP
Established in 1970, DDP provides unmatched service and attention to customers in the form of engineering, innovative designs, LED prototypes, test and evaluation, and tailored LED solutions for specific indication and illumination applications. Located in El Segundo, Calif., DDP's 45,000-squarefoot manufacturing facility includes a flexible production line, a dedicated quality assurance department, surface-mount assembly equipment, a machine shop for prototyping and development, and an engineering
lab for new product design and qualification. DDP is ISO 9001 certified, demonstrating its commitment to continuous improvement of products, processes, and responsiveness to the needs of customers.
