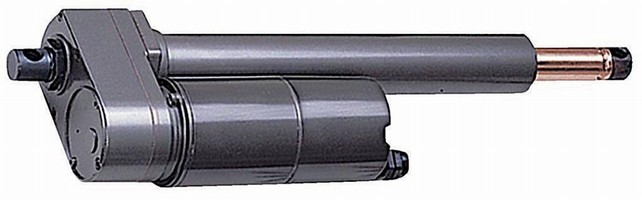

Linear Actuators can operate from -26 to 65°C.
August 27, 2008 -
Including 110 and 230 Vac models, Jaeger® IA4A/B Series linear actuators offer 4,500-13,600 N static load capacity depending on model and standard stroke lengths from 100-600 mm. Units can deliver full-load speeds up to 25 and 46 mm/sec with force reaching 2,300 and 6,000 N in both push and pull modes using Acme and ball screw, respectively. Featuring rugged construction with powder coated aluminum housing and O-ring sealing, they can withstand harsh environments.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
SKF USA, Inc.
890 Forty Foot Rd., P.O. Box 352
Lansdale, PA, 19446
USA
Jaeger® 'IA4A/B Series' Linear Actuators Engineered for Industrial AC-Powered Applications
Jaeger® brand "IA4A/B Series" linear actuators from SKF® benefit from highly robust engineering for optimized and reliable performance in the most demanding AC-powered industrial applications. Enhanced corrosion resistance and effective O-ring sealing contribute added protection in harsh operating environments.
IA4A/B linear actuators (110VAC and 230VAC) can run in a wide range of ambient temperature conditions from -26º C to 65º C. Static load capacity ranges from 4500N to 13600N, depending on model, and standard stroke lengths from 100mm to 600mm can be achieved.
The IA4A series with Acme screw can realize full-load speeds up to 25mm/s and force up to 2300N in both push and pull modes. The IA4B series with high-efficiency ball screw can deliver full-load speeds up to 46mm/s with force reaching 6000N in both push and pull modes. Duty cycles for all models are 25%.
These actuators feature rugged construction with powder coated aluminum housing, steel protection tube, stainless steel extension tube, and powder metal gears; a clutch offers overload protection for safety; and actuators are lubricated at the factory for their service life. Cable lengths can be customized as needed.
Options include thermo protection, adjustable limit switches, and potentiometer sensor. Custom products can be developed and full application support is available.
|
|
|
|
|
|
|
|
