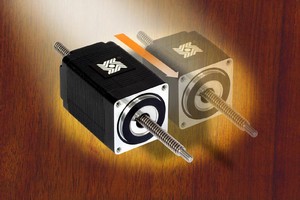

Linear Actuator delivers thrusts of up to 30 lb.
July 1, 2008 -
Available in variety of resolutions ranging from 0.000125-0.002 in./step, Series 28000 (Size 11) double stack non captive hybrid linear actuator is suited for situations where lead screw is secured at both ends and motor translates along lead screw. Targeting applications that require precise positioning and rapid motion such as medical equipment, semiconductor handling, valve control, and telecommunications, it can also be customized to meet specific requirements.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Haydon Switch & Instrument, Inc.
1500 Meriden Rd.
Waterbury, CT, 06705 3910
USA
New Size 11 Double Stack Non-Captive Hybrid Linear Actuator
Date May 30, 2008
Waterbury, CT - Haydon Switch & Instrument, Inc. is proud to introduce the 28000 series (Size 11) double stack non captive hybrid linear actuator, the latest addition to its continuously growing hybrid motor line. Equipment designers and engineers now have an even more compact option for their linear motion applications. The new size 11 double stack non captive hybrid linear actuator includes numerous patent pending innovations that provide customers high performance and endurance in a small package.
In the double stack non-captive linear actuator design, the lead screw runs axially through the center of the motor and must be restrained from rotating for proper operation. This is normally accomplished by attaching the screw to a non-rotating member of the mechanical assembly. As the internal threaded rotor rotates the lead screw will move axially but will not rotate. This design is especially suited for long linear travel requirements and applications where the lead screw is secured at both ends and the motor translates along the lead screw. When incorporating the latter approach, the motor must be prevented from rotating.
This double stack non captive hybrid linear actuator is available in a wide variety of resolutions ranging from 0.000125" (.003175 mm) per step to 0.002" (.0508 mm) per step and delivers thrusts of up to 30 lbs. (133 N) without compromising long life. Applications requiring precise positioning and rapid motion are best suited for this motor. Typical applications include medical equipment, semiconductor handling, valve control, X-Y tables, hand held instruments, telecommunications, and many more. Priced aggressively, this product is ideal for incorporation into your next project. In addition to standard configurations, Haydon can custom design this motor to meet your specific application requirements.
Haydon is recognized worldwide as a leader for stepper motor based linear actuators, rotary motors, lead screw assemblies, and sealed switches. The Company, headquartered in Waterbury, CT, develops, designs and manufacturers internationally patented products for the global marketplace. The unique Haydon designs provide precise, reliable motors with unmatched performance-to-size ratios. Motors are simple and versatile, making them well suited for customization and manufacturing.
