Linear Actuator controls flow of fluids and gases.
June 13, 2002 -

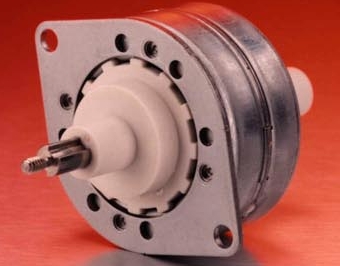

Series K923 bidirectional digital linear actuator provides resolution as fine as 0.004 in. per pulse. It has modified rotary stepper motor and rotor with internally molded thread that mates to externally threaded lead screw shaft. Rotary motion is converted to linear movement, with travel per step determined by pitch of lead screw and step angle of motor. Applications include HVAC refrigerant flow control, and measurement and dispensing of medical fluids.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Danaher Motion/Deltran Pt Brakes/Clutches
6095 Parkland Blvd., Suite 310
Mayfield Heights, OH, 44124
USA
Thomson Airpax Mechatronics Introduces New Digital Linear Actuator That Offers High Performance In a Small Package
Ronkonkoma, NY -- Thomson Airpax Mechatronics - a world leader in stepper motor technology - announces a bidirectional digital linear actuator (DLA) that provides high linear resolution as fine as .004 in. per pulse.
The new actuator is ideal for precise, measured control of fluids and gases in such applications as HVAC refrigerant flow control, and measurement and dispensing of medical fluids.
Called "Series K923," the DLA is a modified rotary stepper motor, with a rotor that includes an internally molded thread that mates to an externally threaded shaft (lead screw). Rotary motion is converted to linear movement, with the travel per step determined by the pitch of the lead screw and step angle of the motor.
Energizing the unit's coils (unipolar and bipolar) in proper sequence causes the threaded shaft to move out of, or back into the rotor in precise linear increments. When power is removed, the actuator shaft remains in position.
Weighing only 5.5 oz. (156 g.) with a maximum pull-in rate of 300 step/sec, the 12 models in the Series K923 feature a linear force up to 23 lbs.
Series K923 is rated with a maximum travel rate of 0.95" (24.1 mm) and a maximum linear force (2 phases energized) of 370 oz (103N).
Other key features include:
- radial ball bearing construction for high efficiency
- two voltage ratings - 5VDC and 12VDC
- linear travel per step -- .001 in. (.025mm), .002 in. (.05 mm), .004 in (.10 mm)
- power consumption - 10 watts
- operating temperature range -- -20°C to 70°C
- insulation resistance of 20 ohms
Thomson Airpax Mechatronics can provide electrical and mechanical changes tailored to individual application requirements.
For technical assistance, call a Thomson Airpax Mechatronics engineer at 1-888-554-6684, or 631-467- 8000, fax 631-981-0593, or E-mail: motorinfo@thomsonmail.com. Samples are available from stock. Unit pricing in 1-10 pieces is $75.00.
