Lift System helps service gimbles in nuclear facilities.
May 3, 2004 - Offering 6,000 lb capacity, Dual Lift System features small lift on top for carrying and positioning gimble and large, mobile personnel lift on bottom for moving gimble from service area to reactor. When lift is in position for removing gimble, wheels lock allowing lower lift to rise into position. Second, smaller lift then rises to locate gimble in x-y plane for mounting to crane. Lower lift is hydraulic while upper lift is mechanical. Platform is 7 x 14 ft and expands to 9 x 14 ft.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Handling Specialty Mfg. Ltd.
P.O. Box 98
Grimbsy, ON, L3M4G1
Canada

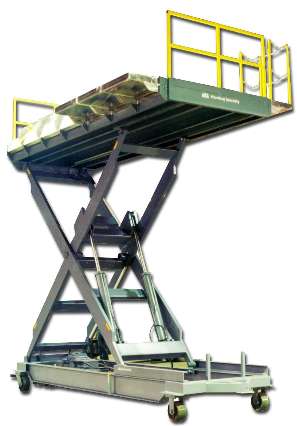

Purpose-Built Lift For Servicing Gimbles In Nuclear Facilities
(Grimsby, ON April 29, 2004) Handling Specialty engineered and manufactured this unique lift system for servicing gimbles. The gimble is a device that is mounted to the underside of an overhead crane in the reactor tube area of a nuclear power plant. It is used to remove old fuel rods and insert new ones into the reactor.
The removal of the gimble assembly from the underside of an overhead crane requires precise, vertical and horizontal positioning. Handling Specialty designed a dual lift system with a small lift on top for carrying and positioning the gimble and a large, mobile personnel lift on the bottom for moving the gimble from the service area to the reactor. When the lifts are in position for installing or removing a gimble, the wheels lock allowing the lower lift to rise into position. The second, smaller lift then rises to locate the gimble in the x-y plane for mounting to the crane.
The system’s lower lift is hydraulic while the upper lift is mechanical to ensure accurate positioning. Also included is a 7 by 14 foot platform, which expands to 9 by 14. Other features of this 6,000 pound capacity lift include high-tolerance poly-faced wheels, aluminum platform extenders and an integral power pack.
Specifications
Model # 136-60XP
6,000 lb. capacity
Hydraulic actuation
204" long, 82" wide
136” vertical travel
