Laser Tube Cutting System delivers high degree of automation.
September 27, 2011 -
Able to cut large diameter, thick walled tubes, LT JUMBO Series can process mild, high strength, alloy, and stainless steels. System can be used to cut round, square, and rectangular tubes as well as non-tubular open structural sections ranging from 3-20 in. dia and lengths to 60 ft. All loading, cutting, and unloading operations are controlled by CNC, and system control software automatically selects optimal cutting method.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
BLM Group USA
29380 Beck Rd.
Wixom, MI, 48393
USA
Automated Laser Tube Cutting System from BLM Group USA

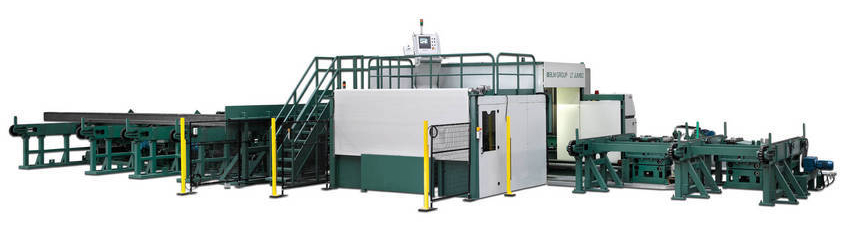

BLM GROUP USA (Wixom, MI) has introduced the LT JUMBO Series, an automatic laser tube cutting system designed to bring higher levels of precision to the laser cutting of large diameter, thick walled tubes, along with the heightened efficiency and productivity needed to compete with the plasma systems commonly used to cut this class of material.
The system can be used to cut round, square and rectangular tubes, plus non-tubular open structural sections, ranging in diameter from 3-20" (75-508 mm) and lengths up to 60' (18 m). The versatile LT JUMBO can process mild, high strength, alloy and stainless steels, all with superior cut quality. LT JUMBO can, for instance, bevel edges and also countersink holes cleaner and more accurately than typical plasma systems.
Laser technology's inherent flexibility is heightened by the fact that LT JUMBO eliminates the need for special fixtures. This means that high volume production as well as low volume prototype work can both be processed easily, quickly and cost effectively.
A key aspect of the system is its high level of automation. All loading, cutting and unloading operations are controlled by CNC, and the system control software automatically selects the best cutting method. Because all machine operations are performed by programmed commands no manual set ups or fixtures are required. Once tubes are placed on the loader they are moved one by one into the feeding line with its automated chuck system.
First, the rear drive chuck grips the tube and indexes it into a pair of working chucks and then into the cutting area. The rear chuck does not release the tube until the entire part has been processed.
The combined action of the two working chucks and drive chuck move and position the tube under the five-axis cutting head according to the program parameters. The interpolation of the cutting head in combination with the tube movement allow for processing anywhere along the tube length. The machine can cut in front of the main
chuck, between the working chucks or behind the main chuck. The design provides maximum flexibility and access with little or no scrap.
After being laser cut each finished part is unloaded to a specific programmed position according to length. Parts up to 10' (3 m) in length can be unloaded onto the short part unload conveyor; longer parts, up to a maximum of 60' (18 m) will be sent to the long part unloader.
The ability to efficiently, accurately and consistently cut nearly any geometry in tube or pipe means that the LT JUMBO can bring higher levels of efficiency to tube fabrication in a number of different industries and applications, such as structural erecting, agricultural equipment, construction equipment, ship building, the oil industry, mining and conveying, heavy-duty machine tools, railway and shipyard, to name just a few.
BLM GROUP is a global leader in tube processing solutions. Its product line includes laser cutting, cold sawing, bending, end-forming, and tube measurement
equipment, as well as wire bending machines. With more than 50 years of tube experience and thousands of applications, the BLM GROUP is a leader in the manufacture of tube fabrication equipment.
|
|
|
|
|
|
|
|
