Laser Texturing Machine handles oversized molds.

Share Like Tweet Add Email

Press Release Summary:

October 12, 2012 - With mechanical design and digitized process, 5-axis LASER 4000 5Ax adds unique and various textures to oversized molds for range of components covers for automotive and other industries. Unit enables components as large as 3 x 4 m and as heavy as 18 tons to remain stationary on floor while machine's axes move around it, texturing on all part sides if required. Additionally, functionality is capable of 3D distortion of texture and masters texture direction related to part shape.

Agie Charmilles, LLC

560 Bond St., Lincolnshire, IL, 60069, USA

Original Press Release

GF AgieCharmilles Introduces Market's Largest Laser-Texturing Machine

Press release date: October 5, 2012

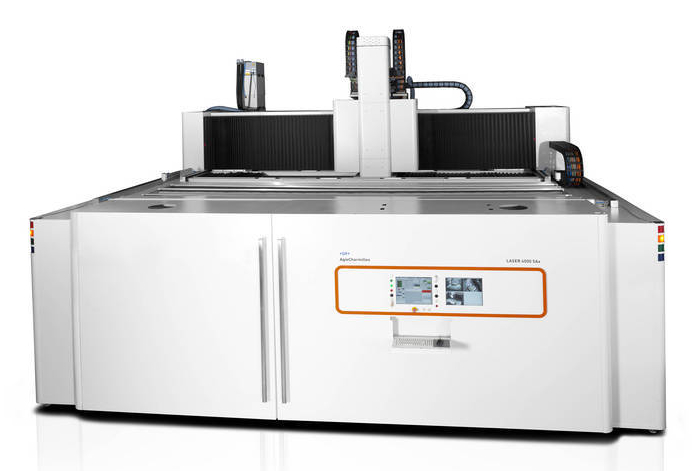

New LASER 4000 5Ax enables flawless texturing of oversized molds

Lincolnshire, Illinois – With its new LASER 4000 5Ax, GF AgieCharmilles now offers the largest laser-texturing machine on the market.

Featuring a completely new mechanical design, this 5-axis machine easily adds unique and various textures to oversized molds for a wide range of components, including bumpers, instrument panels, door panels, central consoles and airbag covers for the automotive industry and others also working with large components.

The LASER 4000 5Ax operates in such a way that a large component as big as 3 x 4 meters and as heavy as 18 tons remains stationary on the floor while the machine’s axes move around it, expertly texturing on all part sides if needed. Such movement is possible because the machine’s fourth and fifth axes are attached to the Z-axis head.

Additionally, the LASER 4000 5Ax manages 3D distortion of texture and masters texture direction related to part shape.

Because of its fully digitized process, the LASER 4000 5Ax allows manufacturers to envision a design, preview it onscreen, and perfectly reproduce it on a workpiece. The machine includes on-board machining strategies to ensure optimal machine performance, best material removal rate and accurate reproduction of the intended texture. The machining strategies embedded in the LASER 4000 5Ax can be easily used by designers with little machining experience and machinists with little design background.

The LASER 4000 5Ax is one of five machines, encompassing various models, within GF AgieCharmilles’ laser texturing product line. With its laser technology, the company offers a process that is faster, quieter and more repeatable than conventional manual and chemical etching processes. And while chemical etching produces only three to five layers, GF AgieCharmilles’ laser technology achieves 30 to 50 layers, allowing for greater creativity in part design across a wide variety of materials, including graphite, aluminum, copper, steel, carbide, brass and ceramics.

Laser texturing also offers pollutant-free operations, producing no fluids, slurry or chips. In fact, a vacuum guarantees clean operations by automatically extracting any dust particles produced during the process.

About GF AgieCharmilles
GF AgieCharmilles is the North American leading supplier of laser texturing solutions, wire EDM, CNC and manual diesinking systems and high speed/high performance 3- and 5-axis milling machines. For more information on the company’s products and services, contact Gisbert Ledvon, GF AgieCharmilles, 560 Bond St., Lincolnshire, IL 60069-4224, Tel: 1-800-CTC-1EDM. Gisbert.Ledvon@us.gfac.com, Fax: 847-913-5340, or visi http://www.gfac.com/us.
