Laser Station features reflectorless 3D measurement at 300 m.
August 5, 2009 -
Optimized for use within 300 m from base unit, TDRA6000 has ability to automatically target reflective tape targets and corner cube reflectors, as well as measure without targets. Typical 3D point accuracy at 35 m is .25 mm with reflectors, while reflectorless accuracy is 1 mm. Offering submicron level fine positioning, device incorporates proprietary piezo direct drive technology to deliver high speed motorization and acceleration. Built-in Bluetooth connection aids data transfer.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Hexagon Metrology Inc.
250 Circuit Drive
North Kingstown, RI, 02852
USA
Hexagon Metrology Introduces New Leica Total Station at CMSC
Leica TDRA6000 Features Reflectorless 3D Measurement at 300 Meters

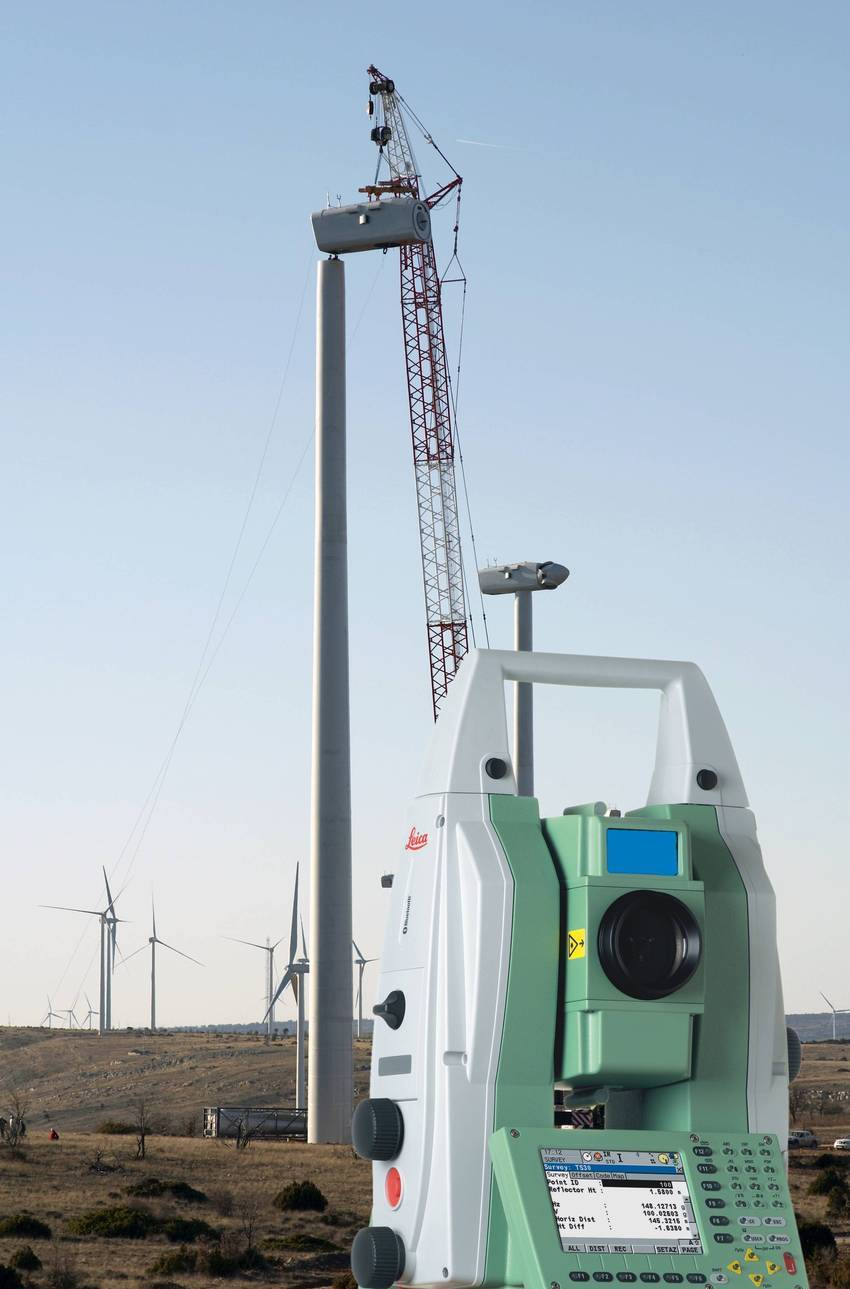

North Kingstown, RI - July 27, 2009 - Hexagon Metrology Inc. announced at the Coordinate Metrology Systems Conference (CMSC) in Louisville, Kentucky, the North American debut of the new Leica TDRA6000 Total Station, the most accurate Leica Geosystems total station ever released for industrial use. This Leica Geosystems laser station has the ability to automatically target both reflective tape targets and corner cube reflectors. The unit can also measure without targets. Typical 3D point accuracy at 35 meters is .25mm with reflectors. Reflectorless accuracy is 1mm. The TDRA6000 is optimized for use within 300 meters from the base unit. This product replaces the TDA5005 total station.
Total stations are used for large-scale installation, assembly, measurement, adjustment and alignment applications, such as aerospace tooling, printing presses, process machinery, erection of wind turbine or antenna towers, supercollider arrays, and any application that requires the precision location of components in three-dimensional space.
Leica Geosystems' proprietary piezo direct drive technology has been incorporated into the Total Station to deliver high speed motorization and acceleration that is up to four times faster than the previous generation, but still allows for submicron level fine positioning. This technology has very low power consumption, requires minimal maintenance, and is nearly silent The unit is now coupled with Leica's proprietary PowerSearch technology that quickly and automatically locates and locks onto a target, and re-locks onto a target in the event of an interruption in the beam. The TDRA6000 delivers high performance in a compact, portable, battery powered unit.
Measurement data collected with the TDRA6000 can be downloaded via a built-in Bluetooth connection into a metrology software package for further analysis and results reporting. The TDRA600 is immediately available for shipment.
About Hexagon Metrology
Hexagon Metrology is part of the Hexagon AB Group and includes leading metrology brands such as Brown & Sharpe, CE Johansson, CimCore, CogniTens, DEA, Leica Geosystems (Metrology Division), Leitz, m&h, PC-DMIS, QUINDOS, ROMER, Sheffield and TESA. Hexagon Metrology brands represent an unrivaled global installed base of millions of CMMs, portable measuring systems and handheld instruments, and tens of thousands of metrology software licenses. Hexagon Metrology empowers its customers to fully control manufacturing processes that rely on dimensional precision, ensuring that products manufactured precisely conform to the original product design. The company offering of machines, systems and software is complemented by a wide range of product support, aftermarket and value-added services. More information can be found at www.HexagonMetrology.us
|
|
|
|
|
|
|
|
