Large-Part HMC Series offers multiple spindle options.
November 9, 2009 -
Modular HMC 1250 Series offers 6,000 rpm/61.6 hp, 180,000-position A-axis tilt spindle for 5-axis horizontal machining in addition to all-around 10,000 rpm/75 hp spindle; high-speed 24,000 rpm spindle; high-torque 1,918 lb-ft spindle; and 110 or 130 mm dia live spindle options. High-torque spindle suits aerospace titanium cutting, while live spindles extend W-axis reach for deep cavity milling. Machine has 118 in. max work zone swing range and 81 in. work height capacity.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
MAG IAS, LLC
Olympic Corporate Center I 3940 Olympic Boulevard
Erlanger, KY, 41018
USA
A New Angle on HMC Spindles
A new angle on HMC spindles: full Tilt precision and productivity for heavy 5-axis cutting on large aerospace and energy parts
MAG adds 180,000-position A-axis tilt spindle to HMC Series headstock selections, high-torque 2600 Nm spindle option handles Ti cutting with ease
November 2009 - MAG continues to follow "voice of the customer" input for the design of its modular HMC 1250 Series with a new 180,000-position A-axis tilt spindle for 5-axis horizontal machining on large parts. The new 6000 rpm/ 46 kW (61.6 hp) tilt spindle joins an all-around 10,000 rpm/ 56 kW (75 hp) spindle, high-speed 24,000 rpm spindle, high-torque 2600 Nm (1918 ft lb) spindle and two live spindles (110 or 130 mm diameter) as headstock options. The high-torque, 80 kW, spindle is especially suited for aerospace titanium cutting, while the live spindles extend W-axis reach by up to 800 mm (31.5 in), enabling deep cavity milling to high precision with shorter, more rigid tool lengths. Standard on the live spindle, MAG's exclusive Z-axis thermal compensation software dynamically offsets spindle growth to maintain tight tolerances.

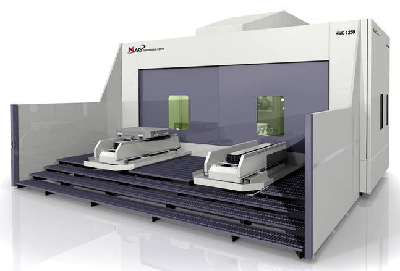

The HMC 1250 Series is engineered for high-precision, high-productivity machining of large aerospace, power generation, pump, valve, and off-road equipment parts. Major machine components, including the X-bed, Z-bed and column are cast ductile iron, with 1250 x 1600 mm pallets, headstock and rotary table housings of gray cast iron. Modular design provides a range of machine travels, 60- to 120-tool magazines and two control choices, in addition to five spindle options, plus tilt capability. That application flexibility combines with maximum 3000 mm (118 in) work zone swing range, 2050 mm (81 in) work height capacity and 7000 kg (15,400 lb) work load.
Powerful and agile, the new HMC offers 56 to 80 kW (75 to 107 hp) spindle power, 35 kN (7870 lb) Z-axis thrust, and super-rigid, full-contouring hydrostatic rotary table. Productivity is enhanced with 40 m/min (1575 ipm) rapid traverse/feed rate and 15 sec tool change (for up to 35 kg tools) to maximize in-cut productivity.
A standard 360,000 position contouring table enables precision 4-axis machining of a variety of part geometries. The hydrostatic table provides a rigid machine platform, while a rugged worm gear drive with clamp securely holds axis position.
Meeting industry needs for tighter part tolerances and greater machining accuracies, the HMC Series comes standard with linear scale feedback in X, Y and Z axes, providing 8 micron (0.0003 in) positioning accuracy and 5 micron (0.0002 in) repeatability. Heavy-duty hardened and ground roller guide ways enable higher rapid traverse and acc/dec rates with double the load capacity and nearly 10 times the wear life of ball-type ways.
About MAG
MAG is a leading machine tool and systems company serving the durable-goods industry worldwide with complete manufacturing solutions. The company offers a comprehensive line of equipment and technologies including process development, automated assembly, turning, milling, automotive powertrain production, composites processing, maintenance, automation and controls, and core components. Key industrial markets served by these technologies include aerospace, automotive and truck, heavy equipment, oil and gas, rail, solar energy, wind turbine production and general machining.
With manufacturing and support operations strategically located worldwide, MAG ranks as a leader in the capital equipment market. A growing number of leading international companies are relying on the impressive innovation power of MAG to assure their technological leadership and prepare for future challenges.
