LM Guide features lightweight design.
August 13, 2008 -
Designed with cold drawn hollow rail and aluminum block, Light LM Guide enables high-speed operation. Unit includes hardened steel raceways and THK Caged Technology, which employs synthetic resin cage with patented curvature that cradles each ball and separates it from next one. Spaces between rolling elements retain grease and act as lubrication system for long-term, maintenance-free operation.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
THK America, Inc.
200 E. Commerce Dr.
Schaumburg, IL, 60173 5340
USA

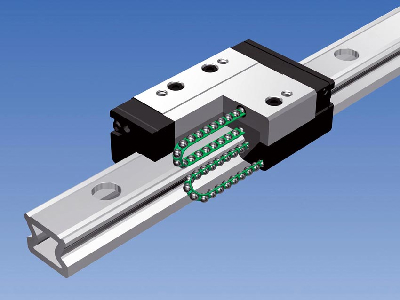

THK'S New Lightweight LM Guide Designed For High-Speed Operation
Schaumburg, IL - (August 11, 2008) Significantly lighter in weight than conventional LM Guides, the new Light LM Guide from THK America, Inc. enables high-speed operation.
Featuring a cold drawn hollow rail and an aluminum block, the Light weighs approximately 40% less than conventional guides (calculated for a 1000 mm rail length with one block). To ensure a long service life, the Light includes the same hardened steel raceways as those used in conventional models. The use of THK Caged Technology in the LM Guide provides smooth movement even during high-speed operation.
THK Caged Technology employs a synthetic resin cage with a patented curvature that cradles each ball and separates it from the next one. The spaces between the rolling elements retain grease and act as a lubrication system for long-term maintenance-free operation.
Lightweight components of the Light LM Guide are dimensionally interchangeable with THK's conventional SSR. Standard blocks can be used on a hollow rail, and aluminum blocks can be used on a conventional rail.
The Light is available in sizes SSR15XW, SSR20XW and SSR25XW.
THK manufacturers the widest range of linear motion products including conventional LM guides, ball screws, mechanical actuators, ball splines and more. All THK products have been designed and manufactured to meet the strictest requirements. THK's experienced Global Engineering Team can provide customized linear motion solutions with our standard linear motion products as well as our mechatronics products for your most demanding applications.
To learn more, visit our IMTS Booth #D-4217 or log on to www.thk.com or contact THK America, Inc., 200 E. Commerce Dr., Schaumburg, IL 60173, Phone: (847) 310-1111, Fax: (847) 310-1271, e-mail: chicago@thk.com.
|
|
|
|
|
|
|
|
