Isolated DC/DC Converters offer 3 W in compact form factor.
September 9, 2009 -
Supplied in 0.774 x 0.301 x 0.4 in. SIP, MEV3 series has power density of 1.9 W/cm³ and galvanic isolation of 3 kVdc. These isolated, single-output DC/DC converters, which offer 83% typ efficiency, are available with choice of 5 or 12 V input voltages and 5, 9, 12, or 15 V output voltages. Operating over -40 to +85°C range at full 3 W load, fully encapsulated and UL 94V-0-rated design uses toroidal magnetics and requires no external heatsinking or components.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Murata Power Solutions, Inc.
11 Cabot Blvd.
Mansfield, MA, 02048
USA

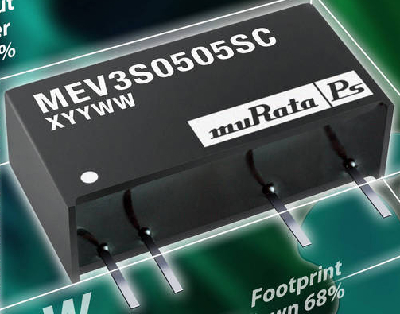

MEV3 Series: Single Output MEV3 Series Isolated DC/DC Converters Offer 3W Output in a 2W Form Factor
--Power density of 1.9W/cm3
--Choice of 5V or 12V input voltages, 5V, 9V, 12V or 15V output voltages
Industry standard pinout and package with no external components or heatsink required
--Typical efficiency of 83% and galvanic isolation of 3kVDC
Murata Power Solutions has introduced a new range of isolated single output DC/DC converters that achieve industry leading power density, efficiency and regulation. Devices from the MEV3 series offer 3W of available output power in a previously rated 2W package to give designers potential board space savings of up to 68%.
Supplied in an industry standard SIP package with overall dimensions of 0.774in. (19.65mm) x 0.301in. (7.65mm) x 0.4in. (10.15mm), the MEV3 series is ideally suited to providing local supplies on control system boards. The fully encapsulated UL 94V-0-rated design uses toroidal magnetics and requires no external heatsinking or components helping to simplify implementation in new designs and reduce overall Bill of Materials costs.
The MEV3 series has a typical efficiency level of 83% and offers a choice of input voltages of either 5V or 12V and single output voltages of 5V, 9V, 12V or 15V. All models in the range have a wide operating temperature range of -40°C to +85°C at full 3W load and have the added benefit of 3kVDC galvanic isolation (1 minute). Power density is 1.9W/cm3 offering a significant improvement compared to the previous industry standard 3W power density of 0.9W/cm3.
Industry standard pinout MEV3 DC/DC converters provide a pin compatible power upgrade path from Murata Power Solutions' 1W NMV/MEV and 2W NMK series'. UL 60950 recognition is pending for all models in the range.
Contact details for publication:
Murata Power Solutions, Inc.,
Power Electronics Division
11 Cabot Boulevard
Mansfield, MA 02048-1151, USA
Tel: 1+ 508.339.3000 Fax: 1+ 508.339.6356
Product URL: www.murata-ps.com
e-mail: muratapr@murata-ps.com
About Murata Power Solutions
Murata Power Solutions (www.murata-ps.com) is headquartered in Mansfield, Massachusetts, with over 1,300 employees, and locations in the USA, Canada, England, France, Germany, Japan and China. Murata Power Solutions designs, manufactures and distributes DC/DC Converters, AC/DC Power Supplies, Magnetics, Data Acquisition devices and Panel Meters, and offers these products in custom, standard and modified-standard variations. These products, which are built to exacting requirements in ISO9000:2000-approved facilities, are typically used worldwide within telecommunications, computing, industrial and other high-tech applications.
About Murata
Based in Kyoto Japan, Murata Manufacturing Company Ltd is one of the world's leading providers of ceramic based components, sensors, and AC/DC and DC/DC power solutions. Founded in 1950, the company has over 34,000 employees worldwide, and over $6.3 billion US in consolidated annual sales (as of March 31, 2008). Everywhere in the world, wherever you can reach, Murata's electronic components are always at work.
|
|
|
|
|
|
|
|
