Interconnect Systems maximize PCB real estate.
April 14, 2009 -
Suited for applications with performance up to 10 GHz at -3 dB insertion loss, Razor Beam(TM) connectors include super-fine ST4/SS4 Series with 0.4 mm pitch and self-mating LSS Series with 0.635 mm pitch. ST4/SS4 Series is offered with stack heights of 0.4-0.6 mm, where as LSS Series and LSHM Series have stack heights of 0.6-0.12 mm. LSS Series includes standard friction lock for increased normal force and optional locking clip, while ST4/SS4 Series has optional latching system.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Samtec, Inc.
P.O. Box 1147
New Albany, IN, 47151 1147
USA

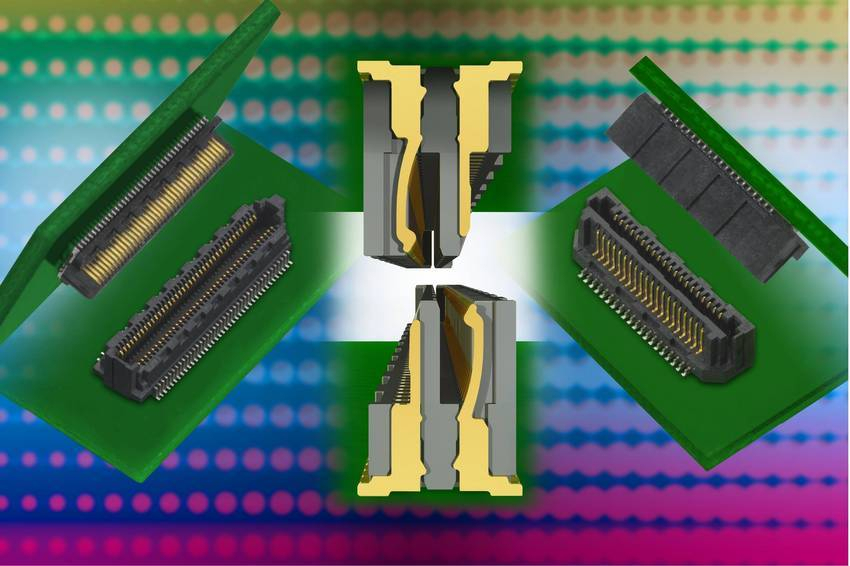

Samtec Introduces Razor Beam(TM) Space-Saving Interconnect Systems
March 2009
Samtec's high speed Razor Beam(TM) interconnect systems are designed to maximize PCB real estate with their slim, ultra-fine pitch, low profile designs. These space-saving systems are currently available in super-fine .4mm pitch (ST4/SS4 Series) and self-mating .635mm pitch (LSS Series) designs. A .5mm pitch (LSHM Series) system for parallel, perpendicular, and coplanar applications is also in design.
Razor Beam(TM) connectors are well suited for high speed applications with performance up to 10 GHz at -3dB insertion loss. The cost-effective Razor Beam(TM) contacts are ideal for high speed and rugged applications featuring undercut retention notches that increase the withdrawal force and provide an audible click when the contacts engage. The systems are available in a choice of stack heights from .4mm to .6mm for the ST4/SS4 Series and from .6mm to .12mm for LSS Series and LSHM Series.
The LSS Series includes a standard friction lock for increased normal force and an optional locking clip. The ST4/SS4 Series is available with an optional latching system.
Pricing begins at $ .054/per mated line.
For more information on Samtec's complete line of Space Saving Interconnects, contact:
Samtec, Inc.
P.O. Box 1147
New Albany, IN 47151-1147
Phone: 1-800-SAMTEC-9 or 812-944-6733
Fax: 812-948-5047
Internet: http://www.samtec.com
E-mail: info@samtec.com.
|
|
|
|
|
|
|
|
