Intelligent Servo Drive reaches up to 600 W peak power.
April 20, 2009 -
Measuring 65 x 58 x 19 mm, Model IBL3605 embeds motion controller, drive, and PLC in one unit and can control brushless, step, DC, or linear motors up to 180 W. Unit can be used as network drive in distributed motion systems using CAN/CANopen interface, or as standalone motion controller for single-axis control. Motion programming is done from CANopen master via PC/PLC using appropriate motion library, or at drive level using built-in motion controller and EasyMotion Studio platform.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Technosoft S.A.
Rue des Courtils 8a
, ,
Switzerland

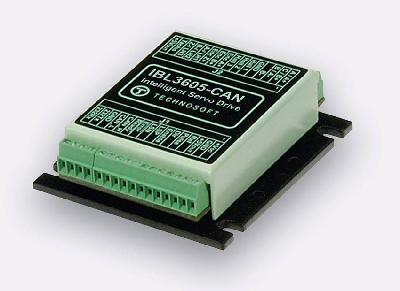

IBL3605 - An Ultra Compact 180 W Intelligent Drive with CANopen
Technosoft announces the new IBL3605, a remarkably compact intelligent servo drive measuring only 65 x 58 x 19 mm, which reaches up to 600 W peak power. Although extremely compact, IBL3605 embeds motion controller, drive and PLC functionality in one unit, and has the flexibility to control brushless, step, DC or linear motors up to 180 W (36 V, 5 A). It can be mounted right beside the motor, all cables and maintenance thus being significantly reduced.
Fully programmable and extremely flexible, IBL3605 can be used as a network drive in distributed motion systems using a CAN / CANopen interface, or as a stand-alone motion controller for single-axis control. With IBL3605, motion programming is done from a CANopen master via PC / PLC using the appropriate motion library, or directly at drive level, using the built-in motion controller and the EasyMotion Studio platform. Its embedded motion controller uses the same high-level motion language (TML) for all motor versions, making their technology differences transparent to the user. With the powerful TML programming, you can really simplify complex applications by distributing the intelligence between master and drives. Thus, instead of trying to command each step of an axis movement from the master, you can program the drive in TML to execute complex tasks and to inform the master when these tasks have been completed.
Configuration, tuning and maintenance are intuitive, with features including basic and expert parameter views. Motion modes as contouring, profiling, gearing, electronic camming, PVT are easily executed with IBL3605. The drive is equipped with several sensors (incremental encoders, digital and linear Halls) and communication options (CANopen, CAN or RS-232). Starter kits and motion libraries are available for quick evaluation and integration into industrial applications.
IBL3605 provides top servo performance, compactness, networking and intelligence capabilities using a high-level programming environment. All these features make Technosoft IBL3605 the ideal solution for modern motion control applications, suited for all high-precision industrial areas where space is critical.
Specifications can be found on:
http://www.technosoftmotion.com/products/OEM_PROD_IBL3605.htm
|
|
|
|
|
|
|
|
