Integrated Servo Motors offer DeviceNet compatibility.
December 30, 2008 -
With inclusion of DeviceNet Expansion Module, MAC50-141 and MAC800 series integrate AC-servo motor, encoder, amplifier, positional controller, and DeviceNet. Double-supply facility is available so position and parameters are maintained intact, for example, during emergency stop. Devicenet Expansion Module, which enables access to motor registers, offers position, torque, and velocity control; 6 inputs and 2 outputs; as well as I/O for end-of-travel limits and high-speed start/stop.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
JVL USA/Motion Control Sales Ltd.
8610 Morrow-Rossburg Rd.
Morrow, OH, 45152
USA
DeviceNet Expansion Module for JVL´s Integrated MAC Motors
JVL, now represented in Ohio, USA, has developed a new module for the MAC50-141 and MAC800 series of integrated servo motors that enables the MAC motors to be used on Devicenet. The AC-servo motor, encoder, amplifier, positional controller and Devicenet are all built into the motor. The only connections required are a supply voltage and the Devicenet cables. The device type is a "Position controller", which is a standard method for controlling position when motion control is used on Devicenet. A double-supply facility is available so that position and parameters are maintained intact for example during an emergency stop. Via Devicenet it is possible to access all of the MAC motor's registers.
The Devicenet Module offers the following features:
o Position, torque, and velocity control
o 6 inputs and 2 outputs. 24V with opto-coupler
o I/O can be used for end-of-travel limits and high-speed start/stop
o Hardware and software adjustment of baud rate and address
o Galvanically insulated I/O and Devicenet

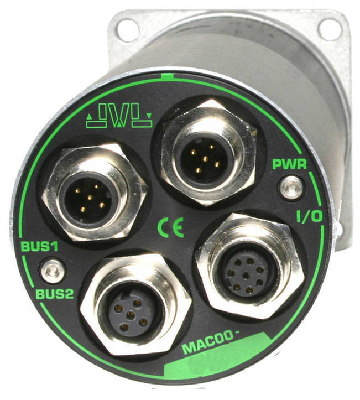

The Module is supplied with M12 connectors (IP67) (MAC00-FD4) with watertight connection for use in industrial environments. Modules with other types of connector can be developed to suit customer requirements.
At no additional cost, the Expansion Module is supplied with EDS files, function blocks and program examples for the most commonly used Devicenet PLCs from Omron and Rockwell. The function blocks are fully documented so they can be readily adapted for use with other PLC types.
The modular construction of JVL's integrated MAC motors makes them particularly well suited for a large number of fieldbus applications. The series also includes Profibus and CANopen (DSP402) models. New modules are under development, including for example models for USB, Ethernet, Bluetooth and Zigbee wireless communication.
Further information can be obtained from:
JVL International o Att: Mike Fisher o Motion & Control Sales Ltd.
8610 Morrow-Rossburg Rd o Morrow o OH 45152-9444
E-mail: mfisher@jvlusa.com o Tel.: 513/877-3134 oTel.: 513/282-0888 (Tech Support Line) o Fax: 513/877-2471o www.jvlusa.com
|
|
|
|
|
|
|
|
