Integrated Motor, Drive suit limited-space motion applications.
December 24, 2008 -
Measuring 1.9 x 1.4 x 2.0 in., MDrive14Plus Microstepping and MDrive14Plus Half/Full Step utilize NEMA size 14 brushless 1.8° stepping motor. MDrive14Plus Half/Full Step suits basic applications requiring no more than half and full step, while MDrive14Plus Microstepping is capable of full (256 x 200) microstepping and features 12-48 Vdc supply input, choice of internal magnetic or external optical encoders with multiple line counts and index mark, and -40 to +85°C operating range.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Intelligent Motion Systems, Inc.
370 N. Main St.
Marlborough, CT, 06447-1334
USA
Two New Step & Direction MDrive14Plus Ultra-Compact Integrated Products
Integrated motor+drive solutions ideal for motion applications with limited space
MARLBOROUGH, CT - November 20, 2008 - The MDrivePlus product line, with its proven leading integrated motor and drive technology, expands its smallest and lowest cost all-in-one motion control product offering with two new step & direction solutions: the MDrive14Plus Microstepping and the MDrive14Plus Half/Full Step.

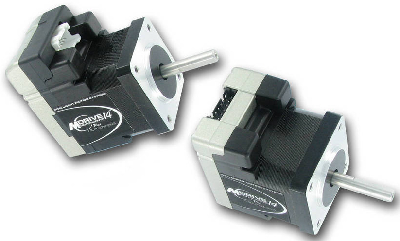

Ultra-compact MDrive14Plus products utilize a NEMA size 14 brushless 1.8° stepping motor and measure a mere 1.9" x 1.4" x 2.0" (48x36x52mm). These products are an ideal solution for many motion applications where machine space is limited such as in medical, biomedical, clinical chemistry platforms and lab automation. For complete details, visit www.imshome.com.
The MDrive14Plus Half/Full Step is suitable for basic applications requiring no more than half and full step.
The MDrive14Plus Microstepping is capable of full (256 x 200) microstepping. Features include +12 to +48 VDC supply input, choice of internal magnetic or external optical encoders with multiple line counts and index mark, and an extended operating range of -40° to +85°C providing long life, trouble free service in demanding environments.
Oversized input capacitors are used to minimize power line surges, reducing problems that can occur with long runs and multiple drive systems. Unsurpassed smoothness and performance is achieved through advanced 2nd generation current control. By applying innovative techniques to control current flow through the motor, resonance is significantly dampened over the entire speed range and audible noise reduced.
The MDrive14Plus can reduce size, cost and complexity in a wide range of brushless motor applications without compromising functionality, and is an ideal compact solution where space is limited.
About Intelligent Motion Systems, Inc.
For more than 20 years, IMS has provided innovative motion control solutions in brushless motor technology and electronic controls. Its products are routinely used in applications demanding highly precise, controlled movement including: robotics, medical, assembly, semiconductor, packaging, engraving and pick-and-place. An industry leader in integrated motor and drive solutions, IMS is an R&D driven company with a solid commitment to Excellence in Motion(TM). To learn more about Intelligent Motion Systems, please visit www.imshome.com.
|
|
|
|
|
|
|
|
