Inserts suit high-load attachment applications.
June 21, 2005 -

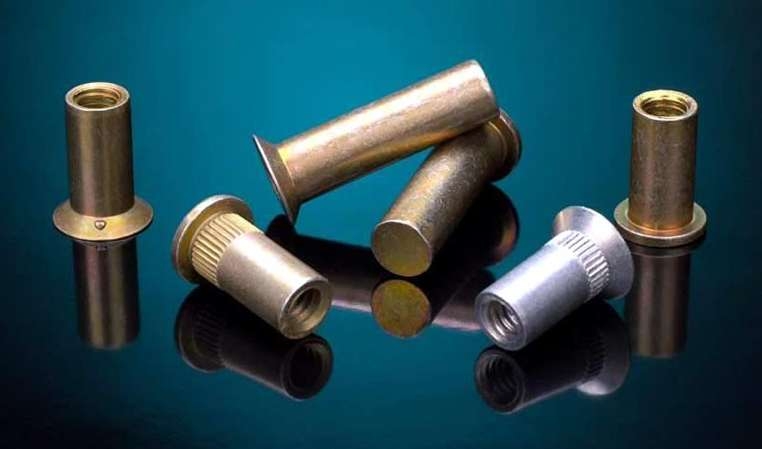

Atlas(TM) MaxTite® blind threaded inserts provide permanent metal threads in blind attachment applications, where only one side of workpiece is accessible for fastener installation and final component assembly. Inserts can be used in panels as think as .020 in. Available in flathead and countersunk types, units offer thread sizes from No. 4-40 through ½ in.-13 and M3 through M12. Rib or key features are offered for high-torque applications.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
PennEngineering® (Penn Engineering)
P.O. Box 1000
Danboro, PA, 18916
USA
Atlas(TM) Maxtite® Blind Threaded Inserts Ideal for High-Load Attachment Applications
Heavy-duty Atlas(TM) MaxTite® blind threaded inserts feature a thicker head and heavier wall than standard types to serve ideally in demanding high-load applications. These fasteners provide permanent metal threads in "blind" attachment applications, where only one side of a workpiece is accessible for fastener installation and final component assembly. They represent practical alternatives to tapped holes, weld nuts, rivets, and self-drilling or tapping screws.
An added advantage is that during fastener installation, several thin sheets of dissimilar materials can be assembled and then final components can be attached. This capability eliminates any need to perform spot welding or other secondary operations, saving production steps, time, and costs.
Installed from the accessible "front" side of a workpiece, Atlas MaxTite blind threaded inserts can be utilized in panels as thin as .020"/0.51mm. Their use eliminates any need for additional hardware besides a mating screw to complete component attachment.
Available types include flathead and countersunk (with the countersunk feature enabling the fastener to be installed flush with the surface of a sheet). Rib or key features are offered for high-torque applications. Thread sizes range from #4-40 through 1/2"-13 and M3 through M12.
Unlike weld nuts or press-in type nuts, Atlas MaxTite threaded rivet nuts can be installed permanently anywhere and at any stage in the shop or field utilizing a hand-held portable tool.
Contact Michael J. Rossi, PennEngineering® Fastening Technologies, 5190 Old Easton Road, Danboro, PA 18916-1000. Phones: 800-237-4736 (toll-free in the U.S.) or 215-766-8853; Fax: 215-766-0143. Web site: www.pennfast.com
|
|
|
|
|
|
|
|
