Industrial Power Supplies serve battery-backed applications.
July 16, 2012 -
With 90-264 Vac universal input, BCS series includes 75/100/155 W units that serve applications which use battery backup to maintain equipment operation during mains failure. All versions come in enclosed metal case and provide constant voltage source to power load. While nominal outputs include 13.8 or 27.6 Vdc for +12 or +24 Vdc, separate constant voltage/constant current output that charges standby battery is available. Optional third +5 Vdc/3 A regulated output is also available.
Additional information provided by manufacturer
|Original Press release |
990 Benecia Ave.
Sunnyvale, CA, 94085
Industrial Supplies for Battery-Backed Applications
XP Power today announced the BCS series of industrial supplies aimed at a broad range of applications that use battery backup to maintain equipment operation during a mains failure. The series offers 75 Watt, 100 Watt or 155 Watt versions and are available with either 13.8 VDC or 27.6 VDC for + 12 VDC or + 24 VDC nominal outputs. The units provide a constant voltage source to power the load. A separate constant voltage / constant current output charges the standby battery. An optional third + 5 VDC / 3 A regulated output is available across the range to supply logic, fans or additional control functions.
In the event of a power loss on the AC input, the battery charging output switches to an input from the battery source providing a power source to the load. Protection features of the BCS series include battery overload, reverse polarity, output overvoltage, and output short circuit that prevents damage to the load, the external batteries and the power supply itself. Control signals provide low battery voltage disconnect, battery low warning and AC OK.

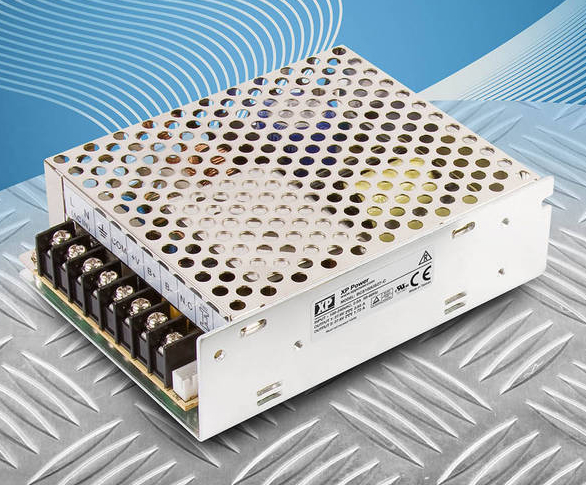

The BCS75 (75 W), BCS100 (100 W) and BCS155 (155 W) models are enclosed metal cased units and can deliver the full load from - 20 degrees C to + 50 degrees C without derating or +70 degrees C with derating. The 75 W and 100 W ranges are also available in an optional open-frame format.
Accommodating the full 90 - 264 VAC universal input range, the BCS series is suitable for worldwide use and carries EN/UL60950 approval for IT and industrial equipment.
The BCS series is priced from $27.30 for 500 pcs. They are available from Newark or direct from XP Power and come with a 3 year warranty
For further information and reader enquiries:
Duane Darrow, XP Power, 990 Benecia Avenue, Sunnyvale, CA 94085
Tel: (408)732-7777 Email: firstname.lastname@example.org
Fax:(408)732-2002 Web: www.xppower.com
William Sng SK, XP Power (Singapore) PTE LTD
Tel: +65 68469368 Email: email@example.com
Fax: +65 67418730 Web: www.xppower.com
XP Power is committed to being a leading provider of power solutions, including AC-DC power supplies and DC-DC converters. With ISO9001:2008, XP Power offers total quality, from in-house design through to manufacturing facilities around the world. The company offers the widest range of power products available from one source and unrivalled technical and customer support, aiding both vendor consolidation and cost reduction programmes. XP has 27 sales offices throughout Europe, North America and Asia.
XP Power Ltd, a London Stock Exchange listed public company, has design centres in Fyfield (UK), Orange County (California), and Singapore, which also serves as the company's headquarters. Manufacturing is carried out near Shanghai, China. The design teams push back the boundaries of cost and technology, providing market leading power products. Dedicated in-house Engineered Solutions teams provide customer specific solutions, with rapid response times. The applications team provide expert technical support to help customers integrate and use XP power products worldwide.
