Industrial ATX Motherboard serves DVR, NVR, and signage markets.
March 1, 2013 -
Based on Intel® B75 Express chipset, IMB204 accommodates 22 nm, third generation Intel® Core™ i7/i5/i3 processors in LGA1155 socket. Embedded board also supports 32 GB DDR3 1333/1600 system memory and PCIe x16 Gen 3 as well as SATA-600 interfaces, while Intel® HD Graphics with DX11 support enables optimal graphic processing and dual-view capability. Along with diverse I/O and expansion capabilities, board features support for Trusted Platform Header 1.0 and Intel® Anti-Theft.
Original Press release
AXIOMTEK
8F, No.4, Lane 235 Pao Chiao Rd.
Taipei, ,
Taiwan

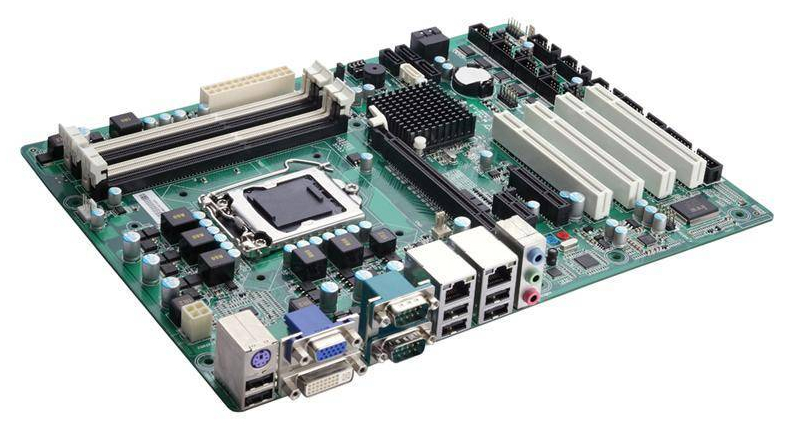

Axiomtek Launched 3rd Generation Intel® Core(TM) ATX Motherboard with B75 PCH - IMB204
Taipei, Taiwan - Axiomtek has announced the launch of IMB204, its ATX industrial motherboard based on the Intel® B75 Express chipset and designed for the 3rd Generation Intel® Core™ i7/i5/i3 processors in LGA1155 socket. The IMB204 meets the requirement of optimum performance with cost-effectiveness. This industrial-grade ATX motherboard supports Trusted Platform Header 1.0 and Intel® Anti-Theft for better security protection. This embedded board also supports 32 GB DDR3 1333/1600 system memory and PCI Express x16 Gen. 3 as well as SATA-600 interface. With the new Intel® HD Graphics with DX11 support, the IMB204 features powerful graphic processing and dual-view capability. With these incredible capabilities and features, the platform is excellent for industrial automation, gaming, DVR, NVR, and signage markets.
“Supporting the latest 22nm 3rd Generation Intel® Core™ processors, the IMB204 motherboard uses the Intel® B75 Express chipset, offering advanced performance in both computing and graphics and cost-effectiveness. This high performance ATX motherboard is also designed to operate at a very low-power consumption as well as limited space. It has a wide range of storage, I/O and expansion connectivity for system integrators in need of numerous and flexible interfaces,” said David Chiu, PM of Product Planning Division at Axiomtek.
The outstanding IMB204 comes with rich expandability including one PCIe x16 Gen.3, one PCIe x4, one PCIe x1, four 32-bit/33 MHz PCI slots, and an onboard TPM header. Its one SATA-6Gb/s and five SATA-3Gb/s connectors allow storage requirements to be met with ease. Other I/O features include: twelve high-speed USB 2.0 ports, six COM ports (5 x RS-232 & 1 x RS-232/422/485), dual Gigabit LANs ports, VGA, DVI-D, HD audio, 8 channels Digital I/O (4-IN & 4-OUT), LPT, and PS/2 keyboard and mouse ports. The embedded platform also provides reliable operation and non-stop capability with watchdog timer and SMBus. The SMART FAN function keeps CPU and system temperature within a specified range.
The high-performance IMB204 will be available around early March, 2013. For more product information or pricing, please visit us at www.axiomtek.com or contact our sales representative at info@axiomtek.com.tw.
Advanced Features
• LGA1155 socket 3rd Generation Intel® Core™ i7/ i5/ i3/ Celeron® processors
• 4 DDR3-1333/1600 DIMM support up to 32 GB
• Dual-view display via DVI-D/VGA
• PCIe Gen. 3 supported
• 1 SATA-600 & 5 SATA-300
• 12 USB 2.0 supported
• TPM 1.0 header support
|
|
|
|
|
|
|
|
