Inductive Analog Sensors offer accuracy to one micron.
January 2, 2004 -

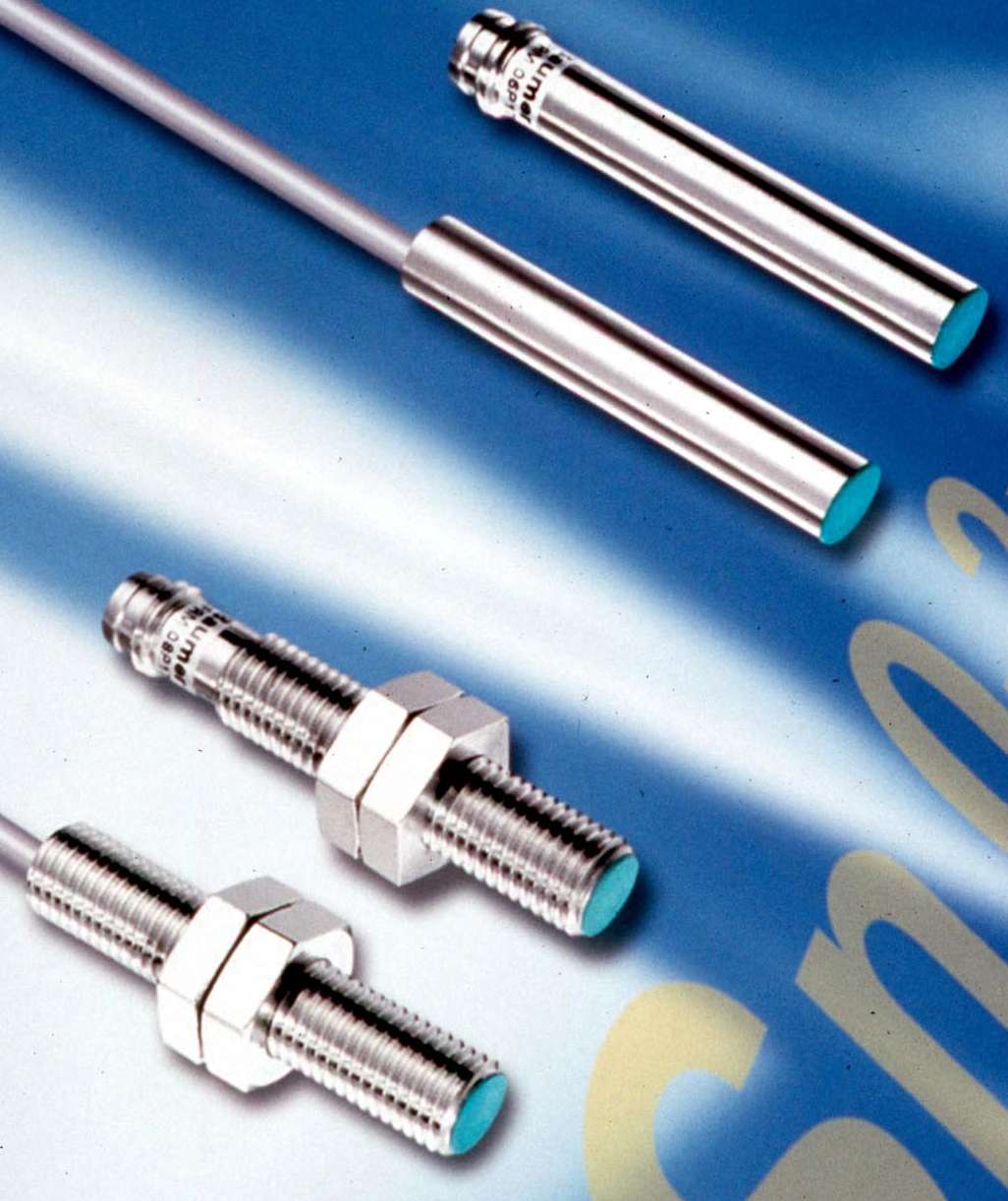

Miniature, self-contained, inductive analog sensors provide precise measurement and linear output of distance measurements with accuracy to one micron. They can detect any metal target and are insensitive to industrial environments. Short-bodied, tubular, 6.5 mm sensors measure 40 mm long and have measuring ranges of 2 mm with repeatability of 0.001 mm. Voltage outputs are 0-10 Vdc or 0-10 mA, and supply voltage ranges from 15-30 Vdc.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Baumer Ltd.
122 Spring St., C-6
Southington, CT, 06489 1534
USA
Baumer Electric Introduces Ultra-Miniature Analog Inductive Sensors
Southington, Conn. - December 16, 2003.... Baumer Electric has introduced an innovative line of ultra-miniature self-contained inductive analog sensors with increased installation flexibility for precision gauging and measuring applications.
The newest inductive analog sensors in the Baumer line offer highly precise measurement and linear output of distance measurements with accuracy to one micron. For smaller operating environments, short-bodied tubular 6.5 mm sensors measuring only 40 mm in length offer the same range and repeatability of long body tubular sensors.
Baumer Electric ultra-miniature inductive analog sensors offer measuring ranges of 2 mm, with repeatability of 0.001 mm. Voltage outputs available are 0 to 10 VDC or 0 to 10 mA. Supply voltage ranges from 15 to 30 VDC. Easily integrated into control systems, these sensors can detect any metal target and are ideal for distance/level measurement applications. Ultra-miniature inductive sensors are insensitive to harsh industrial environments containing dirt, humidity, dust and oil, and are IP 67 protected.
For more information on the extended line of analog output inductive sensors, contact Baumer Electric at (800) 937-9336, through the internet at www.baumerelectric.com, or via e-mail at sales.us@baumerelectric.com. Baumer Electric is a leader in precision sensing. As a manufacturer of all types of high-quality position sensors since 1952, the company offers customer-oriented sensor solutions for every automation need.
|
|
|
|
|
|
|
|
