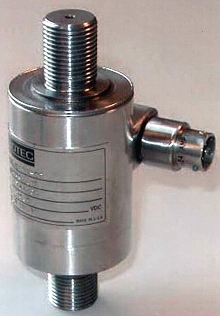

In-Line Load Cell works in compression and tension.
September 3, 2002 - Fully welded and hermetically sealed Model RG has 50% overload capacity rating. Unit exhibits only .003 in. FS deflection and suits applications where side loading cannot be completely controlled. It is available for ranges from 2,000 to 50,000 lb and can be configured with integral male and/or female threads. Excitation up to 15 Vdc or Vac is acceptable and standard output is 2 mV/V. Combined linearity and hysteresis is ±0.25% over operating temperature of -65 to +250°F.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Sensotec, Inc.
2080 Arlingate Lane
Columbus, OH, 43228
USA
New In-Line Load Cell Works in Compression, Tension
The New Model RG load cell from Sensotec is a compression/tension In-Line load cell capable of withstanding significant torque and off-axis loads. This versatile unit exhibits only .003" full scale deflection and is ideal for in-line applications where side loading cannot be completely controlled.
The RG Series is available for ranges from 2,000 to 50,000 lbs. and can be configured with integral male and/or female threads. Excitation up to 15 VDC or AC is acceptable and standard output is 2 mV/V. Combined linearity and hysteresis is ±0.25% over an operating temperature from -65° to 250° F. Optional outputs include 0-5 VDC and 4-20 mA, and a variety of tongue shackles, yoke shackles and rod end bearings are available.
Designed for rugged use, the stainless steel Model RG is fully welded, hermetically sealed, and has a 50% overload capacity rating. This design is featured in a variety of applications including monitoring of cable tension and actuator forces, and parts retrieval from deep well or offshore platforms.
|
|
|
|
|
|
|
|
|
|
|
