In-Line Biomechanical Load Cell offers USB output option.
July 14, 2009 -
Available in 17-4 stainless steel, LCM300 Tension/Compression Load Cell features male threads on both ends and 10 ft long, 28 AWG 4 conductor shielded PVC cable. USB output eliminates need for analog amplifier, power supply, and display equipment. Measuring 1.20 in. in height x 1.00 in. in diameter, device has nonlinearity of ±0.5% and deflection of 0.001 in. nominal. It supports research and lab applications in fields of medicine, industrial ergonomics, and sports science.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
FUTEK Advanced Sensor Technology, Inc
10 Thomas
Irvine, CA, 92618
USA

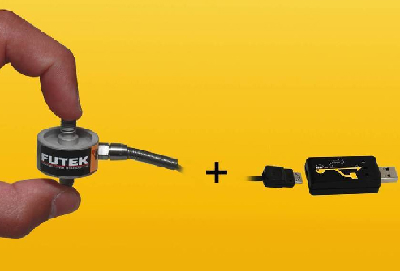

In-Line Biomechanical Load Cell with USB Option
In-line Load Cell used in Biomechanics
Contact: John Vargas or John Schnell at info@futek.com
FUTEK Advanced Sensor Technology is offering their In-Line Load Cell with a USB output option. The LCM300 is a Tension and Compression built for Endurance, Press, or Inline applications. The LCM300 In-line Load Cell now available with USB Output eliminates the need for an analog amplifier, power supply, and display equipment making usage easy to use and much more effective. You can enjoy measurement which is less affected by noise, temperature variation or power supply requirement with the simple plug and play system. This USB integration also gives you power to monitor the output of the sensor and includes FUTEK's USB Basic Software which allows users to monitor the output of the Sensor in real time.
The standard LCM300 Tension and Compression Load Cell model has a very robust construction available in 17-4 Stainless Steel, with male threads on both ends and a 10 feet long 28 AWG 4 conductor shielded PVC cable. This product offers an exceptional miniature design with a height of 1.20" and a diameter of 1.00". You will also find options for external matched output or Teflon cable readily available. For a higher capacity range please see the LCM325, LCM350, or LCM375.
In-line Load cells are commonly used in Biomechanical applications and the FUTEK LCM300 model is designed in a way that can support research and general lab applications in the fields of medicine, industrial ergonomics and sports science. Other applications include welding, anchor testing and these types of Load Cells may also be used in tension and compression applications such as hydraulic systems.
FUTEK Tension and Compression In-Line Load Cells offer high accuracy and high stiffness. This model has Nonlinearity of ±0.5% and Deflection of 0.001" nominal. The standard LCM300 Tension and Compression Load Cell can be modified or customized to meet your requirements and most models are in FUTEK's inventory making them available for 24 hour shipping. Similar to their entire Load Cell product line this model is manufactured in USA and uses metal foil strain gauge technology.
Product Highlights:
Weight: 2 oz
Miniature Design
Resistance to High Extraneous Loads
Low Deflection
17-4 Stainless Steel Construction
Both Tension & Compression
Utilizes Metal Foil Strain Gauge Technology
For those who are a looking for a complete system solution, FUTEK can provide both signal conditioned displays or our VCal Portable System. FUTEK's VCal Portable System brings an easy-to-use system verification directly to the customer making it ideal for on-site verification and calibration of your products. FUTEK LCM Series is also available with TEDS / IEEE1451.4 option.
|
|
|
|
|
|
|
|
|
|
|
