Hybrid Linear Actuators are optimized for resolution.
September 10, 2008 -
Available in captive, non-captive, and external linear designs, 28000 series (Size 11) double stack hybrid linear actuators feature resolutions from .000125-.002 in. per step and can also be micro-stepped. They occupy 1.1 in. square space and deliver up to 30 lb thrust. In addition to standard configurations, products can be custom-designed to application requirements. Elements of construction include engineering thermoplastics in rotor drive nut and stainless steel acme lead screw.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Haydon Switch & Instrument, Inc.
1500 Meriden Rd.
Waterbury, CT, 06705 3910
USA

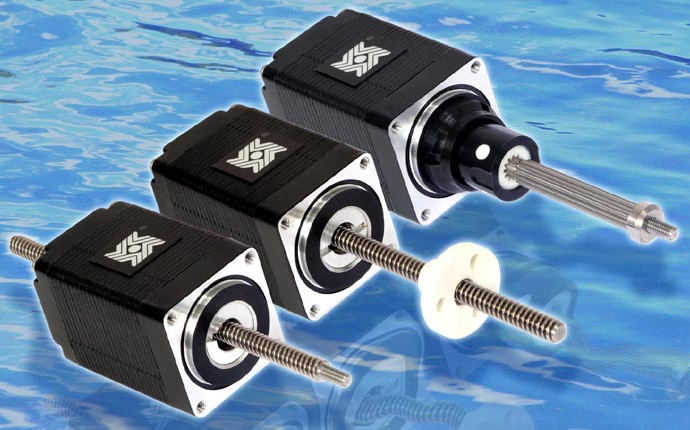

New Size 11 Double Stack Hybrid Linear Actuators
Waterbury, CT - Haydon Switch & Instrument, Inc. is proud to introduce the 28000 series (Size 11) double stack hybrid linear actuators, which are based on some of the most advanced technology in the world today. The 28000 series double stack hybrid linear actuators are available in three designs - captive, non-captive and external linear versions.
They are available in a wide variety of resolutions ranging from .000125" (.00317 5mm) per step to .002" (.0508 mm) per step and delivers thrust of up to 30 lbs. (133 N). These models can also be micro stepped for even finer resolution.
These linear actuators occupy a minimal 1.1" (28mm) square space and include numerous patented innovations that provide customers high performance, endurance and new linear motion design opportunities in a small package. The use of proprietary manufacturing processes which incorporate engineering thermoplastics in the rotor drive nut and a stainless steel acme lead screw engineered to assure reliability and performance.
Typical applications include medical equipment, semiconductor handling, valve control, X-Y tables, hand held instruments, telecommunications, and many more. In addition to standard configurations, Haydon can custom design these actuators to meet your specific application requirements.
Haydon is recognized worldwide as a leader for stepper motor based linear actuators, rotary motors, lead screw assemblies, linear rail systems, and sealed switches. The Company, headquartered in Waterbury, CT, develops, designs and manufacturers internationally patented products for the global marketplace. The unique Haydon designs provide precise, reliable motors with unmatched performance-to-size ratios. Motors are simple and versatile, making them well suited for customization and manufacturing.
|
|
|
|
|
|
|
|
