High Voltage Termination Enclosures handle up to 8 kV.
January 18, 2010 -
Featuring single door style with clamped cover, HV4X series of increased safety (Exe) enclosures are available in stainless steel 316L or 304, in sizes from 12 x 6 x 24 to 36 x 16 x 60 in. for 1 x 1 connection series, and 20 x 8 x 20 to 36 x 10 x 60 in. for 2 x 2 connection series. Designed for use in explosionproof/flameproof applications, XHVX series cast aluminum enclosures carry IP66 rating and feature maximum current rating of 1,000 Amps.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Adalet
4801-TR W. 150th St.
Cleveland, OH, 44135 3301
USA
Adalet Offers High Voltage Termination Enclosures for Hazardous Locations
Cleveland, OH - Adalet provides enclosure options for high voltage applications in hazardous locations. The HV4X and XHVX series of high voltage termination enclosures are designed for use in explosionproof / flameproof and increased safety applications. The enclosures offer a variety of connection options and are designed to handle voltages up to 8kV and currents up to 500 amps.
The HV4X series of increased safety (Exe) high voltage termination enclosures feature a single door style with clamped cover and are available in stainless steel 316L or 304. The 1 x 1 connection series is designed for shielded or unshielded cables up to 8kV at 500A, while the 2 x 2 connection series is designed for two parallel unshielded cables up to 2kV at 1kA total. The HV4X series is offered in sizes (HxWxD) from 24"x12"x6" to 60"x36"x16" for the 1 x 1 connection series, and 20"x20"x8" to 60"x36"x10" for the 2 x 2 connection series.

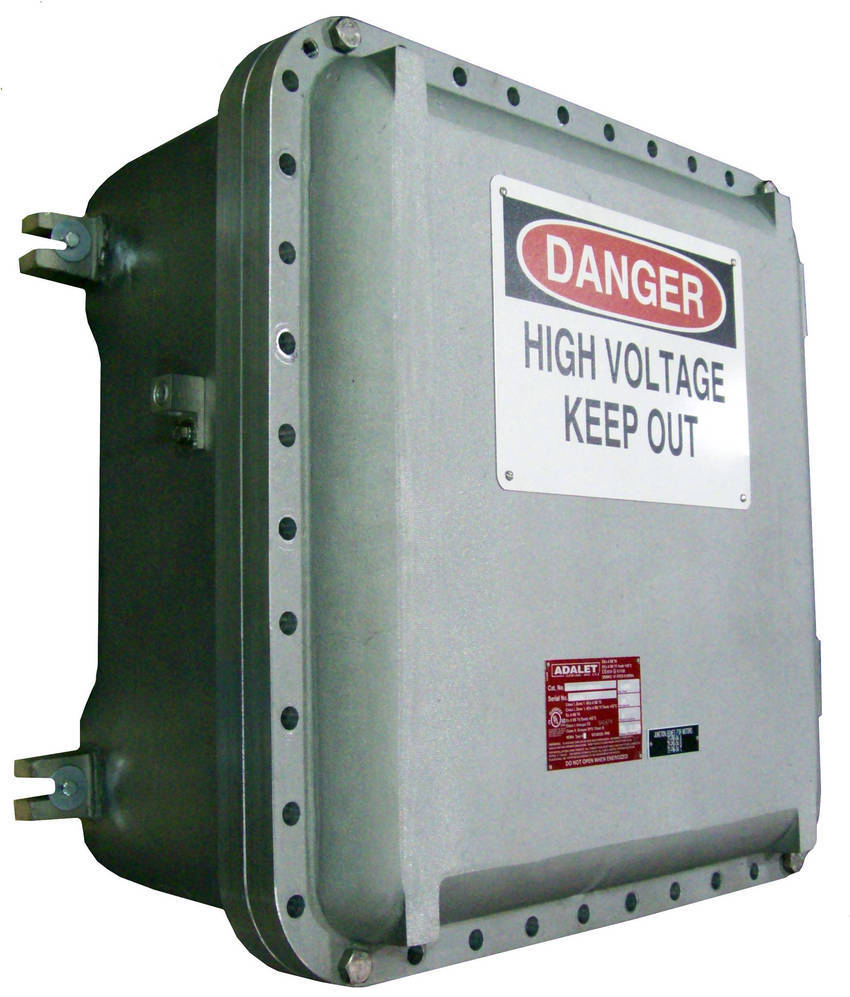

The XHVX series of high voltage termination enclosures are designed for use in explosionproof / flameproof applications. Using Adalet's standard cast aluminum explosionproof junction boxes, the XHVX enclosures include the same connection options and the HV4X enclosure and are approved for use in Division 1 & Zone 1 applications which require explosionproof / flameproof ratings. XHVX enclosures carry an IP66 rating and designed for high voltage applications with maximum electrical ratings of 8kV and 1,000 amps.
Adalet, a Scott Fetzer Company (a subsidiary company of Berkshire Hathaway), is a leading manufacturer of explosionproof enclosure systems and cable accessories, enclosure thermal management products and industrial NEMA rated sheet metal enclosures and related accessories. We offer custom modification as well as standard products for more than 80 years. The company holds certification under ISO-9001 International Standards for Quality Management. Adalet markets a broad line of industrial and explosionproof enclosure systems ranging from junction boxes, control stations, instrument and meter housings, increased safety terminal enclosures, panelboards and motor starters to mining couplers, pilot devices, cable fittings and other accessories.
|
|
|
|
|
|
|
|
