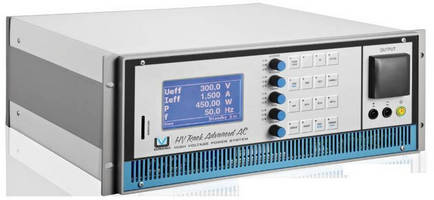

High-Voltage Power Systems offer up to three phases.
May 25, 2012 -
HV Rack Advanced AC and HV Rack Advanced AC 3Phase Series, fully adjustable AC sources with up to 3 phases, offer currents up to 600 A per phase and digitally display all parameters. Along with UI control and flicker simulation, both series offer manually adjustable frequency and waveform generation capabilities for sine, square, and triangle voltages. Each system can be equipped with various interfaces for universal connectivity and control: RS-232, RS-485, USB, IEEE 488, and LAN.
Original Press release
UltraVolt Inc.
1800 Ocean Ave.
Ronkonkoma, NY, 11779
USA
Ultravolt® Launches a New Line of Innovative AC Source Rack Mount High-Voltage Power Systems
Introducing the New HV Rack Advanced AC and HV Rack Advanced AC 3Phase Series
RONKONKOMA, New York - UltraVolt, Inc., a world-leading manufacturer of high-voltage power supplies and high-voltage power systems, announced today its newest high-voltage power systems - the HV Rack Advanced AC and HV Rack Advanced AC 3Phase Series. These unique systems are fully adjustable AC sources with up to three phases, offer currents up to 600A per phase, provide a digital display of all parameters, and include features such as user interface control and flicker simulation.
The HV Rack Advanced AC and HV Rack Advanced AC 3Phase Series are fully adjustable AC sources with up to three phases. The manually adjustable frequency range is between 0.1Hz and 2000Hz, which includes the often-used frequencies of 50Hz, 60Hz and 400Hz (including line sync) with the push of a button. The standard model provides a voltage range of 0-300VAC (425DC) at a power range of 250VA to 45kVA. The currents reach up to 80A per phase, wherein a high-current, controlled-current version of 600A is available. Alternatively, voltages up to 500VAC (700DC) or 700VAC (1kV DC) are available, where peak output currents are reduced by 40% and 50%, respectively. Both series have excellent control, provide data in a control accuracy of 0.1%, have a very low total harmonic distortion of 0.1%, and exhibit a programming voltage change with an accuracy of 100mV.
The HV Rack Advanced AC and HV Rack Advanced AC 3Phase Series generate any waveforms - including sine, square and triangle voltages - that users input into an external oscillator. User-defined wave forms can be read from an SD card via the external SD Card slot. Additionally, the user can access permanently stored waves.
Each system can be equipped with a variety of interfaces to provide universal connectivity and control including RS-232, RS-485, USB, IEEE 488, and LAN. The display automatically measures the output voltage, RMS current, average and peak current, active power, reactive power, apparent power, power factor and crest factor simultaneously. These systems are also available with isolated, self-calibrating 5V or 10V analog interfaces.
UltraVolt's new systems are ideal for laboratory and field testing. One function - flicker simulation - simulates brief power outages, which are one of the most common causes of machine failures. Power interruption often causes systems to shut down and can lead to a shift of phase angles. HV Rack Advanced AC and HV Rack Advanced AC 3Phase systems offer the possibility of individual phase angles with 0.1% accuracy independent from each other, making them able to simulate faults in the network.
"Companies and institutions world wide have found existing AC power sources limited in capability," stated James Morrison, CEO & Cofounder. "The new UltraVolt HV Rack Advanced AC single phase and 3 phase power systems feature higher output voltages and frequency ranges, expanding capability in a form to meet critical project requirements. Systems are deliverable in 4 to 6 weeks and made to application requirements!"
About UltraVolt, Inc.
UltraVolt, Inc. is a world-leading manufacturer of a comprehensive range of standard-product high-voltage power supplies and systems. UltraVolt offers world-class support to customers searching for high-voltage power supplies with short lead times and nominal to high performance for efficiency, accuracy, stability, and ripple. UltraVolt product lines range from benchtop and rackmount systems to microsize PCB-mount modules with outputs of 0 to 62V through 0 to 40kV at 0 to 100mW to 90kW. Founded in 1990, the company is based in Ronkonkoma, NY. For more information, call +1 (631) 471-4444 or visit http://www.ultravolt.com.
UltraVolt, Inc.
Making High Voltage Easier!®
|
|
|
|
|
|
|
|
