High-Speed Power Amp controls high-voltage outputs.
April 25, 2011 -

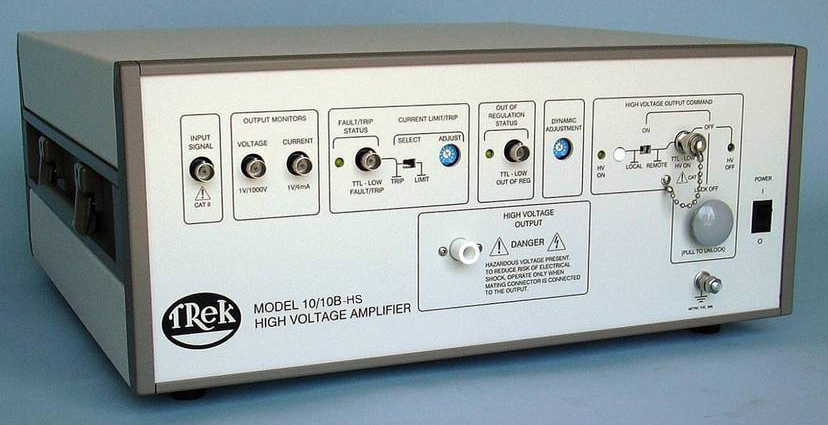

Featuring 4-quadrant, active output stage, Model 10/10B-HS provides high-speed response with slew rate greater than 700 V/µsec, output current to 40 mA peak AC, and signal bandwidth of DC to greater than 19.5 kHz (-3 dB). Solid-state product is configured as non-inverting amplifier with fixed gain of 1,000 V/V. It provides precise control of output voltages from 0 to ±10 kVdc or peak AC with output current range of 0 to ±10 mAdc or ±40 mA peak AC for 1 msec.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Trek, Inc.
11601 Maple Ridge Rd.
Medina, NY, 14103 9710
USA
TREK, INC. Introduces New High-Speed High-Voltage Power Amplifier
Model 10/10B-HS featured at SPIE Smart Structures Conference for use in Electrostatic Deflection, Material Characterization and Plasma Applications
(Medina, NY, USA) - TREK, INC., a designer and manufacturer of high-voltage power amplifiers and high-performance electrostatic instrumentation, introduced a new high-speed, high-voltage amplifier - Model 10/10B-HS - at the 2011 SPIE Smart Structures/NDE Conference.
This new ±10 kV four-quadrant DC-stable amplifier provides high speed of response with slew rate greater than 700 V/µs, high output current to 40 mA peak AC, and large signal bandwidth of DC to greater than 19.5 kHz (-3dB).
Applications include electrostatic deflection (ion beam steering, particle accelerators, mass spectrometers), material characterization (ferroelectrics), and plasma (atmospheric plasma, dielectric barrier discharge). Additional applications include electroactive polymers (EAP), electrophoresis, electrophotography, electrorheological fluids, electro-optic modulation, material poling, and AC or DC biasing.
This new amplifier will enable technological advancement across a diverse group of industries including aerospace, automotive, biotechnology, defense, electronics, energy, instrumentation, laboratory, military, power, semiconductors, and telecommunications.
Model 10/10B-HS features an all-solid-state design to deliver high slew rate, wide bandwidth and low-noise operation. This amplifier provides precise control of output voltages in the range of 0 to ±10 kV DC or peak AC with an output current range of 0 to ±10 mA DC or ±40 mA peak AC for 1 ms. It is configured as a non-inverting amplifier with a fixed gain of 1000 V/V.
The four-quadrant, active output stage sinks or sources current into reactive or resistive loads throughout the output voltage range. This is essential for achieving the accurate output response and high slew rates demanded by reactive loads. The Model 10/10B-HS is protected against over-voltage and over-current conditions that may be generated by active loads or by output short circuits to ground.
Precision voltage and current monitors provide low-voltage representations of the high-voltage output and load current for monitoring purposes or for use as feedback signals in a closed loop system.
The remote high voltage on/off feature provides a connection for a remote device to turn on and off the high-voltage output, making Model 10/10B-HS suitable for automated or computer-controlled systems.
The unit is CE compliant.
The product data sheet is available at: http://www.trekinc.com/products/10-10B.asp
Or go directly to: http://www.trekinc.com/pdf/10-10B-HSSales.pdf
For design options, pricing, and delivery information please email Trek at sales@trekinc.com or call USA 585-798-3140.
To learn about Trek's other amplifiers go to: http://www.trekinc.com/products/HV_Amp.asp
For information about SPIE Smart Structures/NDE: http://spie.org/smart-structures-nde.xml
TREK, INC. (est. 1968) is a privately held company that designs, manufactures and sells high performance electrostatic measurement instruments, sensors & monitors, and high voltage amplifiers, power supplies & generators. Trek's products are used by OEMs involved in semiconductor manufacturing and electrophotography, in applications sensitive to electrostatic discharge (ESD), and by companies and universities involved in a wide variety of research applications, including electrostatics, electrophotography, piezoelectrics, electrohydrodynamics, and plasma chemistry. Customers include numerous Fortune 500 companies and leading universities. For more information email sales@trekinc.com, call USA 585-798-3140 or go to www.trekinc.com .
|
|
|
|
|
|
|
|
