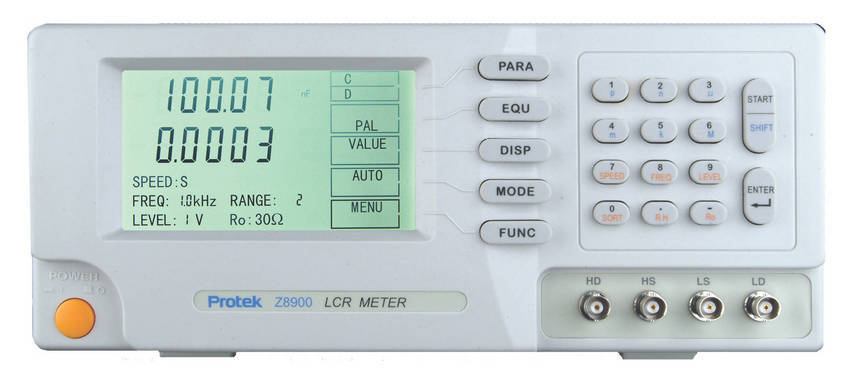

High-Precision LCR Meter offers 0.1% accuracy.
December 4, 2009 -
Model Z8900 LCR meter offers 6 measurement modes at test frequencies of 100 Hz, 120 Hz, 1 KHz, or 10 KHz, with drive voltages of 0.1, 0.3, or 1.0 V and measurement rates to 12/sec. It includes comparator that sorts components by value/tolerance, RS232 interface for remote operation, parts handler interface to operate sorting equipment, and 5-digit dual LCD. Measuring 13 x 15.7 x 6 in., it operates in temperatures from 32-104°F and requires 220 or 120 V, 50/60 Hz AC power.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Protek Test & Measurement
45 Smith Street
Englewood, NJ, 07631
USA
Protek's Cost-Saving, High Precision LCR Meter
Englewood, NJ - Equipped with capabilities found in more expensive instruments of this
type, the new 0.1% Accuracy, Bench Model, LCR Meter from Protek Test and Measurement features RS 232 and Handler interfaces.
For its $992 price tag, the Model Z8900 offers six (6) measurement modes including C+R, C+D, L+R, L+Q, R+Q or Z+U test frequencies of 100Hz, 120Hz, 1KHz or 10KHz, with drive voltages of 0.1V, 0.3V, or 1.0V and measurements rates to 12 per second. It incorporates a built-in comparator for sorting components according to value and tolerance, a RS232 interface for Remote operation and a Parts Handler Interface for operating your component sorting equipment. Add to these, a large 5-digit dual LCD for displaying parameter values in Absolute, Delta and Delta %, Automatic or Manual triggering; and short and open circuit calibration for increasing measurement accuracy.
Accessories include: operating manual, test leads with Kelvin clips; radial lead test fixture with axial lead adaptor; shorting bar; and AC line cord. The Z8900 requires 220V or 120V, 50/60Hz AC power, switch selectable and operates in temperatures from 0°C to 40°C (32°F to 104°F). Weight is 7.7 lbs and size is 13" W x 6" H x 15.7" D. For further details visit www.protektest.com.
Protek Test and Measurement, a division of Intelient Technologies, Inc., is a specialist in the marketing of cost-effective, high performance, quality test instruments since 1989. For further details contact sales@protektest.com or call (201) 227-1161 and ask for the latest catalog. Prompt response and service are available through the firm's national distribution network.
|
|
|
|
|
|
|
|
