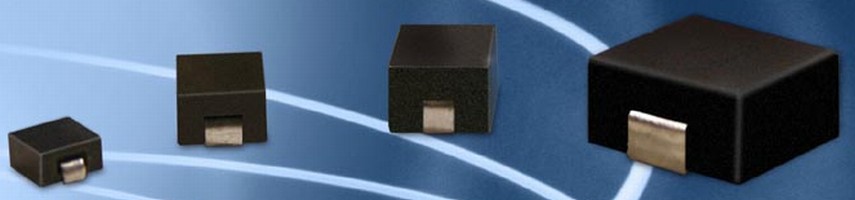

High Power Shielded Inductors suit computer applications.
High Power Shielded Inductors suit computer applications. |
|
|
March 29, 2006 -
Featuring profiles as low as 3 mm, RoHS-compliant HM69 Series has single turn construction with proprietary ferrite core material and class F, 155°C insulation. Products are designed to operate at frequencies up to 5 MHz, with current ratings up to 70 A. Series comprises 10 case sizes with inductance range of 25-300 nH at 100 Khz, typical dc resistance from 0.17-0.45 milliohm at 25°C, and rated current from 18 A to 70 Adc.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
BI Technologies Corp.
4200 Bonita Place
Fullerton, CA, 92835-1051
USA
BI Technologies Develops Low Profile, High Power Shielded Inductors
Shielded power inductors with 3mm board-mounted profiles ideal for computer applications...
Fullerton, Calif (March 20, 2006) - Providing design engineers with an ideal component solution for applications where power efficiency is critical, TT electronics BI Technologies Magnetic Components Division recently developed a series of high power shielded inductors with profiles as low as 3mm. Designated the HM69 Series, the inductors are designed to operate at frequencies up to 5MHz, with current ratings up to 70A.
According to David Smolik, Director of Product Development for the TT electronics BI Technologies Magnetic Components Division, the inductors present lower losses than comparable designs due to their construction. "As power density levels in converters increase, low winding resistance and low core material losses are critical," said Smolik. "The HM69 Series inductors, with their single turn construction and proprietary ferrite core material, exhibit lower losses than other powdered iron designs."
The high power, low profile inductors are ideal for the growing market of the intermediate power bus architecture for blade servers, Smolik continued. The devices are also suitable for other computer and networking applications, including high frequency, high current switching power supplies, point-of-load devices and multi-phase voltage regulator modules.
The HM69 Series inductors feature ten case sizes with an inductance range of 25nH to 300nH at 100Khz, typical DC resistance from 0.17milliohm to 0.45milliohm at 25°C, and rated current from 18A to 70Adc. Operating temperature ranges from -40°C to +125°C, with a maximum ambient temperature of +85°C. The inductors feature class F, 155°C insulation and are RoHS compliant.
Typical pricing for the HM69 Series inductors is about $0.40 to $0.80, depending on size and quantity. Lead time is from stock to 8 to 10 weeks.
For more information, contact BI Technologies at 714-447-2759, by fax at 714-447-2400; by mail at 4200 Bonita Place, Fullerton, CA 92835; or visit www.bitechnologies.com
BI Technologies has been an innovator and leader in electronic components for more than 50 years. The company is a global manufacturer of trimming and precision potentiometers, position sensors, turns-counting dials, chip resistor arrays, resistor networks, integrated passive networks, transformers, inductors, hybrid microelectronics and custom integration products for communication, computer, industrial, and automotive applications.
BI Technologies serves a global customer base with manufacturing locations in the United States, Mexico, Scotland, Japan, China and Malaysia.
TT electronics plc is a global electronics company manufacturing a broad range of advanced electronic components, assemblies and sensor modules for the automotive, industrial, telecommunication, computer and aerospace markets.
Datasheet: http://www.bitechnologies.com/pdfs/hm69.pdf
|
|
|
|
|
|
|
|
