High-Brightness TFT LCDs integrated LED driver circuits.
February 18, 2013 -
In addition to Super Wide Viewing (SWV) technology that enables people to view images with vivid color (no grey inversion) from any angle, 7 in. T-55785GD070J-LW-ABN, 8.4 in. T-55786GD084J-LW-AAN, and 8.4 in. T-55786GD084J-LW-ACN respectively offer 1,000, 600, and 1,200 nits brightness and 800 x 480, 800 x 600, and 800 x 600 resolution. Displays feature LED backlight, 500:1 CR, and LVDS interface; operate from -30 to +85°C; and integrate LED driver circuit with full dimming function.
Original Press release
Kyocera Display America, Inc.
46723 Five Mile Rd.
Plymouth, MI, 48170
USA
Kyocera Display America Introduces New High Brightness Super Wide View TFT LCDs with Integrated LED Driver Circuits for Sunlight Readable Applications

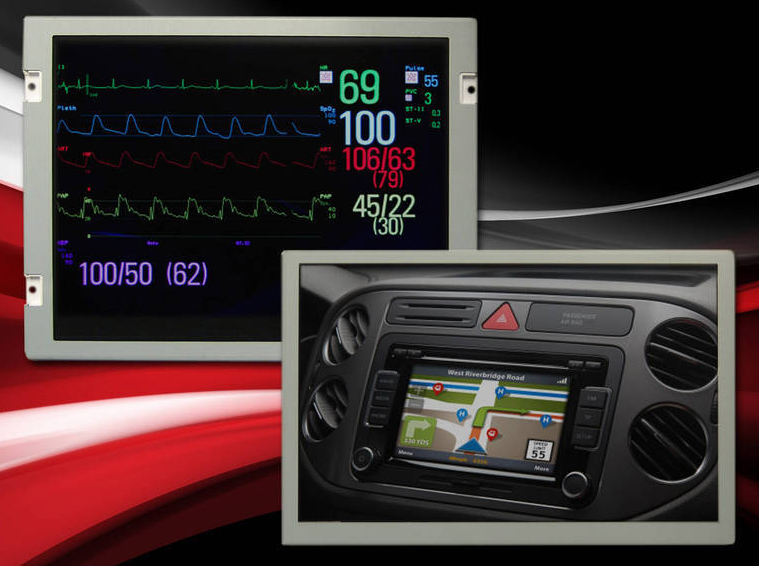

Plymouth, MI -- Kyocera Display America has announced three new TFT-LCDs that will be added to its extensive TFT-LCD product line. The three new products are a 7.0” WVGA and two 8.4” SVGA TFT-LCD displays. All displays feature Super Wide Viewing (SWV) technology and two of them are super high brightness for sunlight readable outdoor applications.
Super Wide Viewing technology delivers true color and the best optical performance. It enables people to view images with vivid color (no grey inversion) from any angle.
Designed with the latest high-efficiency, long lifetime LED backlight, the LCD panels achieve brightness levels as high as 1200 nits (cd/m2), and provide an ideal solution for medical, automotive and any outdoor applications requiring sunlight readability.
The LED driver circuit is integrated into the LCD module, with full dimming function, so no additional components are required to drive the backlight. The backlight itself is specially designed to provide lower power consumption by using the latest technology for LED chips and light guides. The new TFT-LCDs are designed with standard LVDS interface, and offer a wide operating temperature range of -30º to 85º C.
|
|
T-55785GD070J-LW-ABN |
T-55786GD084J-LW-AAN |
T-55786GD084J-LW-ACN |
|
Size |
7.0" |
8.4" |
8.4" |
|
Resolution |
800 x 480 |
800 x 600 |
800 x 600 |
|
Brightness |
1000nits |
600nits |
1200nits |
|
Viewing Angle (U/D/L/R) |
85/85/85/85 |
85/85/85/85 |
85/85/85/85 |
|
Contrast Ratio |
500:1 |
500:1 |
500:1 |
|
Interface |
LVDS |
LVDS |
LVDS |
|
Operating temp |
-30 ~ 80 C |
-30 ~ 80 C |
-30 ~ 80 C |
|
LED drive |
Built-in |
Built-in |
Built-in |
|
Production |
April 2013 |
April 2013 |
April 2013 |
|
Sample |
Now |
Now |
Now |
Kyocera offers long term product availability, which distinguishes the company as a preferred and reliable supplier for industrial, automotive and medical customers.
Kyocera Display Corporation, the leading LCD manufacturer in Japan, is actively engaged in the development of environmentally friendly products and continually strives to reduce the use of environmentally degrading materials and processes in its manufacturing. The company complies with the RoHS directive.
For more information, please contact Kyocera Display America (KYDA), Inc. 46723 Five Mile Road. Plymouth, MI, USA 48170. Tel: 734-416-8500; Fax: 734-416-8520. www.kyocera-display.com
