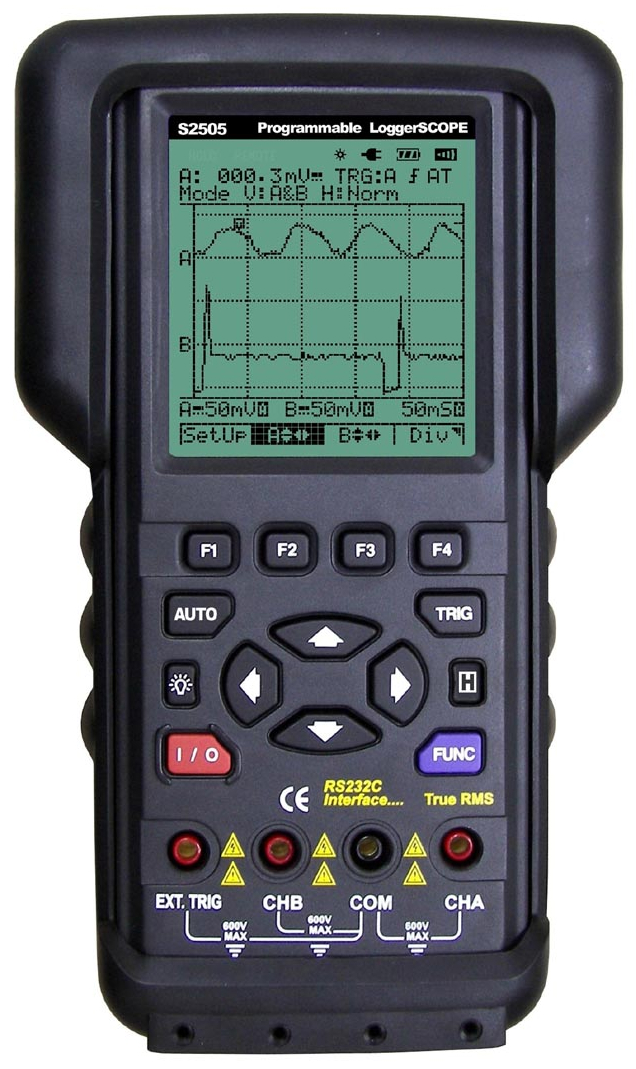

Handheld DSO/DMM integrates 17,000-point data logging.
October 21, 2008 -
Powered by Li-Ion batteries, Model S2505 integrates dual-channel, 5 MHz bandwidth DSO with 50 Ms/S max sampling rate and 10,000-count True RMS Auto Ranging DMM with data logging capability. Solution delivers ±3% vertical accuracy and offers 512 bytes record length in single shot/glitch capture (256 bytes in other modes). Along with 1.0 µsec to 5 sec sweep rate, features include memory for 16 waveforms and setups; trigger sources from channels A, B, and external AC; and USB interface.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Protek Test & Measurement
45 Smith Street
Englewood, NJ, 07631
USA
Advanced Data Logging, Handheld Integrated DSO/DMM
Englewood, NJ... A breakthrough design integrating a battery operated, dual channel, 5MHz bandwidth DSO providing 50Ms/S sampling rate and a 10,000 count True RMS DMM, with data logging memory to 17,000 points, is now the Model S2505 from Protek Test and Measurement.
Attractively priced at $621 and complete with long life, Li-Ion batteries, this advanced full function design is said to be among the "first" for the market and incorporates features previously available only in higher bandwidth DSO's.
Key specifications for the DSO section are: 5MHz bandwidth, 50Ms/S sampling rate, single channel and 25Ms/S, dual channel; ±3% Vertical Accuracy; 512 Bytes Record Length in Single Shot/Glitch capture and 256 bytes in other modes; 1.0µS to 5 Sec. Sweep Rate; 16 Waveforms & Setups Memory Storage; Trigger Sources from channels A, B & External; AC, plus USB interface with Software and Cable.
The True RMS, Auto Ranging DMM section, in addition to the 17,000 points Data Logging Memory, offers 10,000 count capacity; 6 frequency measurement ranges from 100Hz to 10MHz; Min./Max/Avg., Trend plotting and Go/No-Go testing; 4 DCV ranges from 1000mV to 1000VDC; 5 True RMS ACV ranges from 1,000mV to 750VAC and 4 Ohms ranges from 5KW to 5MW. Also included are the RPM, Duty cycle and Pulse width functions.
One and one-half lbs., the S2505 is 3.5" x 7.5" x 1.25" and includes a Manual, Holster, USB Cable & Software; AC/DC Charger and installed Battery Pack.
Protek's DSO/DMM series also includes an upgraded Model S2401U with lMHz Bandwidth, 50Ms/S Sampling Rate plus USB Port with Software, without data logging, selling for $370; and an upgraded Model S2405U with 5MHz Bandwidth and 50 Ms/Sec. Sampling Rate; plus USB port with software without data logging selling for $482.
Protek Test and Measurement, a division of Intelient Technologies, is a specialist in the marketing of cost effective, high performance, quality test instruments since 1989. Please visit www.protektest.com for complete product details. All Protek products are available through a national distribution network.
|
|
|
|
|
|
|
|
