Handheld Calibrator measures 8 types of thermocouples.
April 16, 2010 -
Simulating both voltage and thermocouple readings, SignalCal 2 T/C measures R, S, B, E, K, J, T, and N thermocouples with accuracy of ±0.05%. Measuring function allows for input range of -10 to 110 mW, and user can select temperature output range in °C and °F. Operating for 25 hours on 9 V battery, SignalCal 2 T/C includes operator panel with LCD display, low-battery display symbol, and automatic power-off after 10 minutes if not in use.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
E Instruments International LLC
172 Middletown Blvd., Suite B 201
Langhorne, PA, 19047
USA

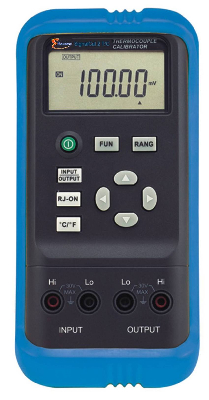

New SIGNALCAL 2 T/C
Simulates Voltage and Thermocouple Readings
o Rugged and Easy To Use
o Able to measure 8 Types of Thermocouples (R, S, B, E, K, J, T, and N)
o An accuracy of ± 0.05%
The NEW, SignalCal 2 T/C is a compact, light weight, and easy to use hand-held calibrator that simulates both voltage and thermocouple readings. It is built rugged and ships with a holster and calibration certificate included.
The Signal Cal T/C features include:
o The ability to select a Temperature Output Range in °C and °F
o A new 9V battery with an estimated battery life of 25 hours
o A measuring function that allows for an input range of -10 to 110mV
o An easy to use operator panel with an easy to read LCD display
o An automatic power off feature that turns the unit off within 10 minutes if not in use.
o A low battery display symbol, so you know when to change the battery
o NIST Traceable Calibration
INNOVATIVE INSTRUMENTATION SOLUTIONS
|
|
|
|
|
|
|
|
