Hall-Effect Current Sensor IC integrates overcurrent detection.
April 10, 2012 -
Supplied in SMT package and optimized for 3.3 V supply operation, open-loop ACS716 has 120 kHz Bandwidth and consists of precision linear Hall sensor IC with copper conduction path near surface of silicon die. Integrated shield technology promotes immunity to current conductor dV/dt and stray electric fields, while voltage on overcurrent input (VOC pin) lets users define overcurrent fault threshold. Internal resistance of copper path used for current sensing is 1 mohm typ.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Allegro MicroSystems Inc.
115 N.E. Cutoff, P.O. Box 15036
Worcester, MA, 01615
USA

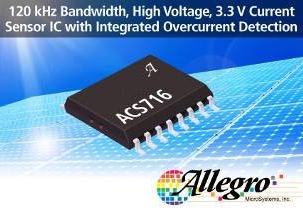

Allegro MicroSystems, Inc. Announces New 120 kHz Bandwidth, High Voltage, 3.3. V Current Sensor IC with Integrated Overcurrent Detection
Worcester, MA - Allegro MicroSystems, Inc. announces an open loop Hall-effect sensor IC with near closed loop performance (in accuracy and bandwidth). Allegro's ACS716 current sensor ICprovides an economical and precise means for current sensing applications in industrial, commercial, and communications systems. The device is offered in a small footprint surface mount package that allows easy implementation in customer applications, and is optimized for 3.3 V supply operation.
The ACS716 consists of a precision linear Hall sensor integrated circuit with a copper conduction path located near the surface of the silicon die. Applied current flows through the copper conduction path, and the analog output voltage from the Hall sensor IC linearly tracks the magnetic field generated by the applied current. The accuracy of the ACS716 is maximized with this proprietary packaging configuration because the Hall element is situated in extremely close proximity to the current to be measured.
High level immunity to current conductor dV/dt and stray electric fields, offered by Allegro proprietary integrated shield technology, guarantees low ripple at output and low offset drift in high-side, high voltage applications. The voltage on the overcurrent input (VOC pin) allows customers to define an overcurrent fault threshold for the device. When the current flowing through the copper conduction path (between the IP+ and IP- pins) exceeds this threshold, the open drain overcurrent fault pin will transition to a logic low state. Factory programming of the linear Hall sensor IC inside of the ACS716 results in exceptional accuracy in both analog and digital output signals.
The internal resistance of the copper path used for current sensing is typically 1 mW, for low power loss. Also, the current conduction path is electrically isolated from the low voltage sensor inputs and outputs. This allows the ACS716 family of sensor ICs to be used in applications requiring electrical isolation, without the use of opto-isolators or other costly isolation techniques.
The ACS716 is priced at $1.95 in quantities of 1,000.
Allegro MicroSystems, Inc. is a leader in developing, manufacturing and marketing high-performance semiconductors. Allegro's innovative solutions serve high-growth applications within the automotive market, with additional focus on office automation, industrial, and consumer/communications solutions. Allegro is headquartered in Worcester, Massachusetts (USA) with design, applications, and sales support centers located worldwide. Further information about Allegro can be found at www.allegromicro.com.
Contact information: Stephanie Fennelley, Allegro MicroSystems, 115 Northeast Cutoff, Worcester, MA 01606
|
|
|
|
|
|
|
|
