HMC offers 40 x 33 x 35 in. work envelope.
January 13, 2009 -
Accommodating parts up to 39.4 in. in both diameter and height, Model EC-630 features dual pallet changer with 630 pallets, each of which handles 2,645 lb load. Geared head couples motor directly to spindle through 2-speed gearbox, which provides 450 lb-ft of torque for heavy material removal and speeds to 6,000 rpm for finish cuts. With separate, protected load station, operator can safely load and unload parts or change fixtures on one pallet, while parts are being machined on other.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Haas Automation, Inc.
2800 Sturgis Ave.
Oxnard, CA, 93030
USA

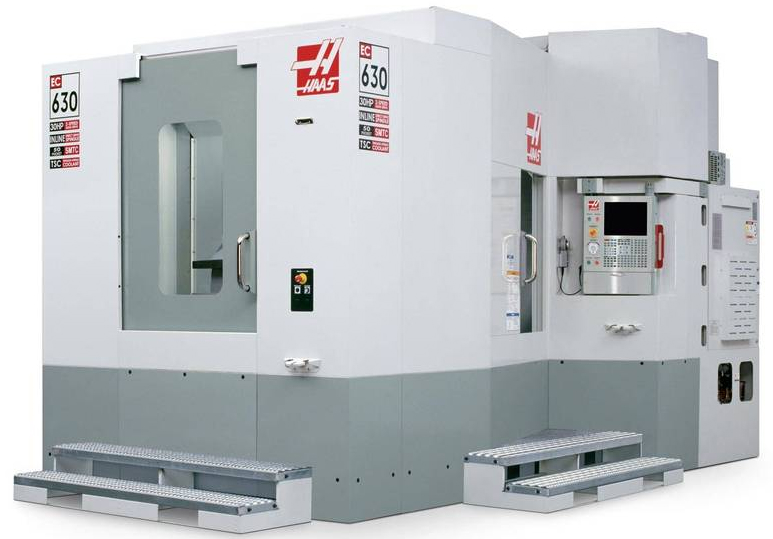

The EC-630 - Powerful High-Productivity Horizontal from Haas
OXNARD, CA- Haas Automation's EC-630 represents the latest expansion of the company's rugged line of high-productivity HMCs.
The EC-630 is a large-capacity, high-production horizontal machining center with a 40" x 33" x 35" work envelope, 50-taper geared-head spindle, dual pallet changer with 630 pallets, 50-pocket side-mount tool changer and a built-in 1-degree pallet indexer (a full 4th axis is available).
The EC-630's geared head couples the motor directly to the spindle through a Haas-built, high-precision gearbox. This smooth-running system is very efficient, and offers tremendous thermal stability. The two-speed gearbox provides 450 ft-lb of torque for heavy material removal, and speeds to 6,000 rpm for finish cuts. Each of the machine's 630 mm pallets handles a 2,645 lb load, and the servo-driven pallet-changer swaps pallets quickly. A separate, protected load station allows the operator to safely load and unload parts or change fixtures on one pallet, while parts are being machined on the other - keeping spindle run-time at a maximum. The machine's enclosure accommodates parts up to 39.4" in both diameter and height.
For long-cycle production with minimal downtime, the EC-630 is equipped with a large-volume coolant tank and a high-capacity belt conveyor for efficient chip removal. Also standard are 710-ipm rapids, a 15" color LCD monitor with USB port, 1 MB of program memory, a flood and washdown coolant system and a programmable coolant nozzle.
To simplify service, the EC-630 spindle, gearbox and motor are assembled as a single modular unit that is easily removed and installed, if necessary.
Built in the USA by Haas, the EC-630 is backed by the worldwide network of Haas Factory Outlets - the most extensive system of support and service in the industry.
For more information about Haas Automation and Haas products, call 800-331-6746, or visit www.HaasCNC.com.
About HAAS Automation:
The world's leading CNC machine tool builder, Haas Automation manufactures a full line of CNC vertical and horizontal machining centers, CNC lathes, rotary tables and 5C indexers. Haas machine tools and rotary products are built to deliver higher accuracy, repeatability and durability than any other machine tools on the market.
From its beginnings in 1983, Haas Automation has always produced top-quality products at affordable prices. By relying on volume sales rather than per-unit profits to build the company, Haas delivers more standard features, high-tech innovations and rock-solid engineering than perhaps any other CNC manufacturer in the world - and at better prices!
|
|
|
|
|
|
|
|
