Grooving Tool eliminates chip packing and sticking.
December 7, 2001 - Tube Sheet Proâ„¢ is suitable for grooving tube sheets in heat exchangers, condensers, and boilers with industry-standard double-groove configuration. Tool is available for 5/8, 3/4, 7/8 and 1 in. tube diameters. It has short tool stroke with no exposed mechanism, interchangeable pilots, and TiN coated steel blades for maximum cutter life. Set-up instructions are marked on adjusting collar for reference, with no measurements required.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Cogsdill Tool Products, Inc.
P.O. Box 7007-TR
Camden, SC, 29020 7007
USA

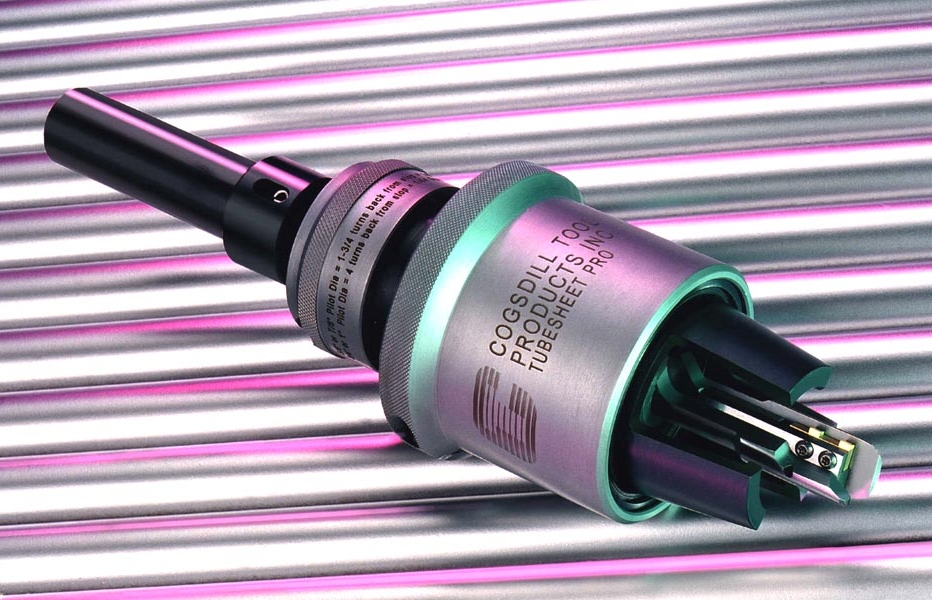

Tube Sheet Pro(TM) Grooving Tool New from Cogsdill Tool Products
CAMDEN, SOUTH CAROLINA (November 1. 2001) - The new Tube Sheet Proâ„¢, from Cogsdill Tool Products Inc. is specially designed for grooving tube sheets in heat exchangers, condensers, and boilers with maximum productivity and professional results. Designed for the industry-standard double-groove configuration, the tool is available from stock for four standard tube diameters: 5/8, 3/4, 7/8, and 1 inch.
Smooth operation allows accurate groove size and location, with good finishes. The tool is easy to adjust for accuracy from the very first cut. Set-up instructions are marked on the adjusting collar for handy reference - no measurements are required. Cutters are easily replaced, with no disassembly required.
The tool has a short tool stroke. With no exposed mechanism: chip packing or "sticking" is eliminated. High-speed steel blades are TiN-coated for maximum cutter life. Interchangeable pilots allow easy diameter changes. Optional overtravel units are available for use in CNC machines or when tube sheets are warped.
|
|
|
|
|
|
|
|
