Grippers feature multiple air connections.
June 13, 2003 -

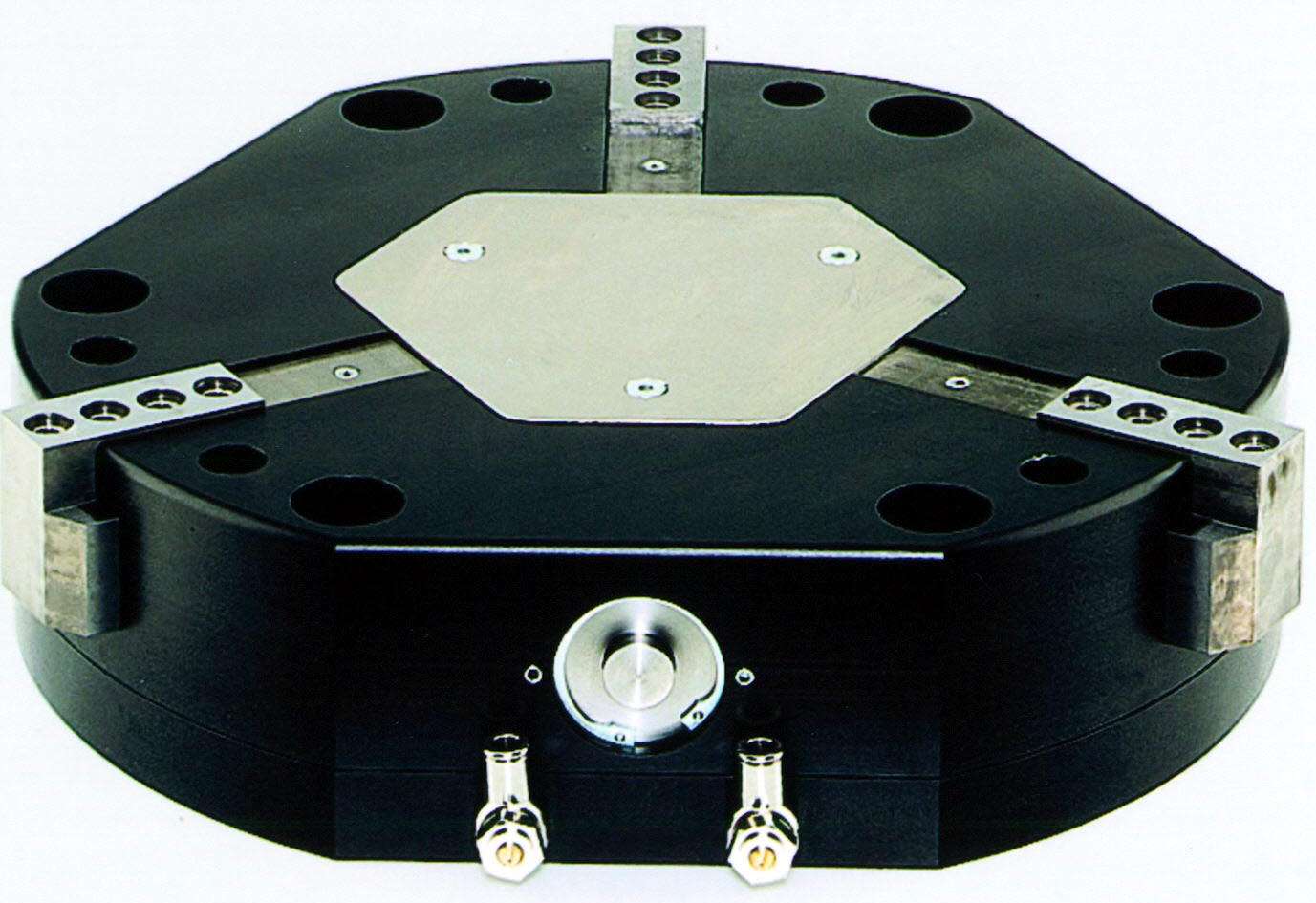

GD500 series long stroke 3-jaw grippers feature piston drive cam mechanism that allows longer stroke in smaller package. Smallest unit in series features 30 mm of stroke in 71 mm thick gripper. Other models feature 40 and 60 mm of stroke in package that is 100 mm thick. Gripper is guided via T-slot to provide stability against moment loads and feature 2,480 N of closing force on pneumatic versions and 12,400 N with hydraulic models.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Techno Sommer Automatic
2101 Jericho Tpke
New Hyde Park, NY, 11040
USA
New GD500 Series Long Stroke 3-Jaw Grippers From Techno-Sommer Features More Stroke In A Smaller Package
Techno-Sommer introduces the GD500 series of long stroke 3-jaw grippers. This series of grippers features exceptionally long stroke in a very thin package to give you more of what you want and less of what you don't. The smallest unit in the series features 30mm of stroke on each jaw in a gripper that is only 71 mm thick. The other two members of this series feature 40 and 60 mm of stroke in a package that is 100mm thick. The unique piston drive cam mechanism allows the longer stroke in a smaller package. In addition to the longer stroke, the gripper is guided via an extra large T-slot guide, providing greater stability against moment loads and greater resistance to side loads. In addition, the grippers feature very high gripping forces for the small package size - 2480N (545 ibs) of closing force on the pneumatic versions and 12,400 N with the hydraulic versions. The grippers all feature multiple standard air connections on the side and bottom for easier fixturing and the bottom connections may be used with a manifold plate for hose-les air connections.
Additional technical information is contained in "Grippers, Catalog H925" available free upon request from Techno-Sommer, 2101 Jericho Tumpike, Box 5416, New Hyde Park, NY 11042-5416. See it now in on the web in both PDF or HTML formats at:
http://www.techno-sommer.com. Phone: 800-948-3246 Fax: 516-358-2576
|
|
|
|
|
|
|
|
