Graphics SoC has integrated dual APIX link.
October 15, 2009 -

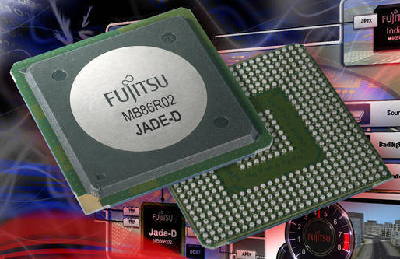

Optimized for modular automotive display systems, MB86R02 (Jade D) incorporates 32-bit ARM926EJ-S(TM) CPU core with Coral PA graphics processor. It is based on 90 nm CMOS process technology and optimized for applications requiring 2D/3D graphics. Along with 105°C rating, features include spread spectrum clock generation and dual APIX(TM) serial gigabit interface. Both links are configurable as transmitter or receiver and support sideband channel for peripheral data.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Fujitsu Semiconductor Europe
Am Siebenstein 6-10
Dreieich-Buchschlag, , D-63303
Germany
Fujitsu Announces New Graphics SoC with Integrated Dual APIX Link for Automotive Applications
New SoC is optimised for modular automotive display systems such as instrument clusters, head-up display units, navigation and rear-seat entertainment applications
Langen, Germany, October 7th 2009 - Fujitsu Microelectronics Europe (FME) has announced the MB86R02 'Jade D', the latest device in its 'Jade' SoC family, which incorporates the powerful 32-bit ARM926EJ-S(TM) CPU core with the company's successful graphics processor 'Coral PA'. Based on Fujitsu's proprietary 90nm CMOS process technology, 'Jade D' is optimised for automotive applications requiring high CPU performance combined with sophisticated 2D/3D graphics. With many special features such as extended temperature range up to 105°C, spread spectrum clock generation (SSCG) and APIX(TM), the MB86R02 is perfectly suited for all modular automotive display applications.
One of the key features of the MB86R02 is the dual APIX serial gigabit interface from Inova Semiconductors. The APIX technology is becoming the new standard for peer-to-peer real-time transmissions of video and peripheral data in the car. It meets the strict EMC requirements of display applications in vehicles and because of its potential for SoC integration it leads to higher performance at significantly lower system costs. Fujitsu was the first silicon vendor on the market to integrate this new video interface into a portfolio of microcontrollers and graphics controllers. The built-in links in the MB86R02 can be used for various link speeds up to 1Gbit/s. Both are configurable as transmitter or receiver and support the sideband channel for peripheral data.
Target applications are graphical dashboard systems, head-up display units, on-board navigation systems, rear-seat entertainment, point-of-sale terminals and industrial control panels. Packaged in a 484-pin TEBGA (Thermal Enhanced BGA), the device requires a supply voltage of 3.3V (I/O), 1.8V (DDR2), 1.2V (internal) and is designed to operate over a temperature range of -40 to +105°C. The integrated SSCG ensures reduced electromagnetic interference (EMI) by slight clock modulation.
The ARM926EJ-S is a fully synthesisable processor with a Jazelle® enhanced (Java(TM) Acceleration) 32-bit RISC CPU, 16kB instruction cache, 16kB data cache, 16kB ITCM, 16kB DTCM and a memory management unit (MMU). The CPU runs all major operating systems and middleware. Further features include an ETM9 (medium) and JTAG ICE interface, 8-channel DMA and 32-bit timers.
Core frequency is 320MHz (generated by on-chip PLL). On-board peripherals include a unified DDR2 memory supporting 320Mbps (up to 128MB), a parallel flash/SRAM host interface with decryption engine, CAN, MediaLB, ADC, I2C, I2S, PWM, SPI, UART, GPIO and an external interrupt.
Fujitsu's 'Coral PA' processor provides sophisticated features for embedded graphics applications that require more display and rendering functions. These features include a rendering engine for 2D/3D graphic acceleration functions combined with ROP and blend operations, a geometry processor supporting floating-point transformations for smooth graphics animation and a dual-display capability that enables independent contents to be shown on two connected screens.
Display panels with a resolutions ranging from 320 x 240 up to 1280 x 768 are supported on two separate outputs. A built-in TCON unit allows panels to be attached without the need for further controller logic, which is a significant cost benefit. A signature unit for safety, dithering and gamma units for picture quality optimisation are available, as well as pixel and layer blending. The physical interface to a display panel can be APIX, RGB digital or RSDS.
Other key graphic and video features include:
A texture mapping unit (up to 4096 x 4096)
Bit-Blt Unit (up to 4096 x 4096)
Alpha Bit-Blt and ROP2 functions
Six layers of overlay display (Windows) per channel
Alpha plane and constant alpha value for each layer
Dual digital video input (various formats including YUV, RGB, ITU656)
Video scaler (up/down scaling)
Brightness, contrast, saturation control for video
Built-in alpha blending, anti-aliasing and chroma-keying
Availability and Support
Sample quantities of MB86R02 will be available from Q4 2009. A dedicated evaluation board and sample programs will also be offered in this time frame.
