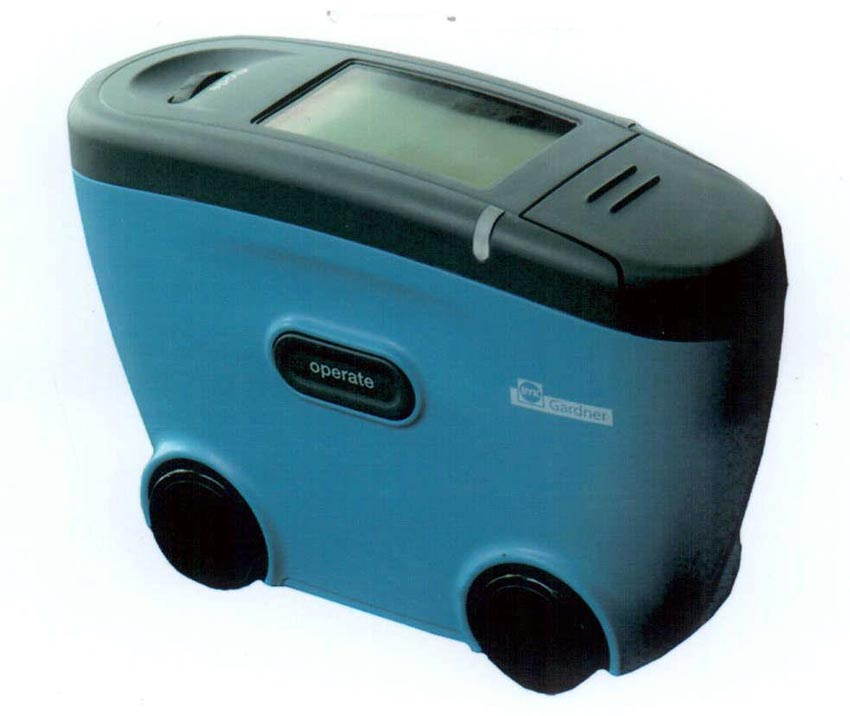

Gloss Surface Analyzer gives orange peel and DOI measurement.
May 25, 2006 -
Designed for high- to semi-gloss surfaces, wave-scan dual aids in analysis and trouble-shooting of appearance problems by evaluating surface quality at each step of paint process. Able to measure both curved and flat areas, it detects optical profile of surfaces for structure spectrum of 0.1-30 mm. Tool features USB port and software auto-chart, and offers selectable scales and scan lengths. Using Access DB for database management, unit provides QC reports in Excel®.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Paul N. Gardner Co., Inc.
316 N.E. 1st St., Dept. TR
Pompano Beach, FL, 33060 6608
USA
wave-scan dual Orange Peel and DOI Measurement on High to Semi Gloss Surfaces
... appearance control is no longer limited to final topcoat inspection.
Like the wave-scan DOI, the optical profile of high gloss surfaces is detected using a laser light source. An additional, Infrared - high energy LED allows measuring the same structure spectrum (0.1 - 30 mm) on medium gloss surfaces. The dullness measurement is recorded with state-of-the-art CCD camera technology. It gives information on the image forming qualities of the surface caused by structures < 0.1 mm.
Close the appearance control loop for the entire paint process
Thus, the surface quality after each paint process step can be objectively evaluated. No more guessing which substrate layer is influencing the final appearance. The wave-scan dual will help you to objectively analyze appearance problems and reduce the time necessary for trouble shooting.
wave-scan dual - a diagnostic tool for trouble shooting and optimizing appearance
Now, you can establish appearance specifications for each paint layer to ensure the final appearance is always on target.
Objective and reliable appearance data
o Good correlation to wave-scan DOI on high gloss surfaces
o Good correlation to mechanical profilometer readings on medium gloss surfaces
o Easy to use with one hand
o For flat and curved areas
o Small and light weight
o Scroll wheel operation and large display
o Selectable scales and scan lengths
o Full statistics with saving in selectable memories
o USB port for data transfer to PC
o Software auto-chart:
o Organizer files for sample id
o Data management with Access DB
o Standard QC Reports in Excel®
Comes complete with: Instrument, Protective cover, Reference tile with certificate, Software auto-chart on CD, Docking station and interface cable, 2 rechargeable Li-Ion battery packs, Battery holder for AA alkaline or rechargeable batteries, 3 Batteries, Operating manual, Carrying case
If you would like more information please call: 1-800-762-2478
|
|
|
|
|
|
|
|
