Gigabit Ethernet Switch offers low-power operation.
October 5, 2011 -
Mounted on 3U cPCI or 6U VME rugged board, 12-port Model H2 supports 16 KB jumbo frames, 802.1P QoS or DiffServ/ToS priority queues, 802.1Q VLAN, port aggregation, and rapid and multiple spanning tree as well as NAT, port forwarding, DNS, DHCP, and firewalling. Unit features true non-blocking GigE integrated switch fabric with 4 Mb packet buffer memory, IPv4 and IPv6 traffic class support, and look-up engine with support for up to 8 K unicast MAC addresses.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
North Atlantic Industries, Inc.
110 Wilbur Place
Bohemia, NY, 11716
USA

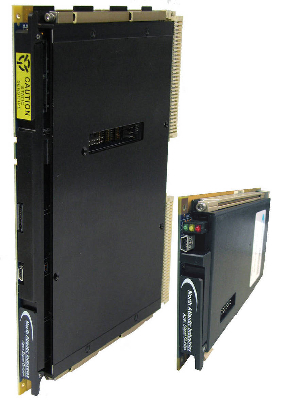

New 3U cPCI/6U VME Layer 2+ Unmanaged, 12-Port, Gigabit Ethernet Switch Module (H2) with Extremely Low Power Consumption
Rugged Switch Module is Highly Configurable and Ideally Suited for SWaP-Constrained Applications
Bohemia NY, -- North Atlantic Industries (NAI) has announced the availability of a rugged 12-port Gigabit Ethernet Switch Module. The H2 is an extremely low power, high performance Ethernet switch. It supports 16 KB jumbo frames, 802.1P QoS or DiffServ/ToS priority queues, 802.1Q VLAN, Port Aggregation, Spanning Tree, Rapid & Multiple Spanning Tree, NAT, Port Forwarding, DNS, DHCP, and Firewalling. The module can be mounted on a 3U cPCI or 6U VME rugged board. When mounted on a 6U VME board, single board computer and/or additional I/O functions can be added to support system level requirements for processing and sensor interfacing.
The H2 implements standard Ethernet switching functions via Broadcom® technology and features:
6.6 W (12 x Gig-E ports active) at 85°C
IPv4 and IPv6 traffic class support
Automatic learning and aging tags
True non-blocking Gig-E integrated switch fabric w/4Mb packet buffer memory (for L2 functionality)
High performance look-up engine with support for up to 8K unicast MAC addresses
"The H2 module switch enables system integrators to link Ethernet-based communications, control systems and sensor data across a broad range of application-ready subsystems," said Lino Massafra VP Sales and Marketing. "Customers looking forward to the next generation of Unmanned Aircraft Systems (UAS) and other autonomous robotic systems will take advantage of the high channel density and extremely low power features our H2 has to offer."
In addition, based on NAI's COTS, multi-function, high-density I/O and processor platforms (i.e. 75D3, 64DP3, 64E3), multi-board systems can be configured combining the H2 multi-port Gig-E switch capability with application specific processing and I/O.
North Atlantic Industries (NAI) is a leading independent supplier of Embedded I/O Boards, Single Board Computers, Rugged Power Supplies, Embedded Systems, Motion Simulation and Measurement Instruments for the Military, Aerospace and Industrial Industries. NAI provides the highest quality COTS and modified COTS products in Commercial, Extended Temperature and Rugged versions. Information about NAI and its products can be found at www.naii.com.
|
|
|
|
|
|
|
|
