Gauges measure low range differential pressure.
August 11, 2009 -
Constructed with aluminum housing, acrylic lens, and silicone diaphragm, Series 6000 features DP ranges from 0-0.25 in. H2O to 0-20 psid. Bi-directional models are available in 0.25-0-0.25 in. H2O to 15-0-15 in. H2O. SWP is -20 in. Hg to 15 psig with 35 psig rating for 0-10, 0-15, and 0-20 psid ranges. Operating from -20 to 140°F, gauges offer accuracy from ±2-4%, depending on DP range.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Mid-West Instrument
6500 Dobry Rd.
Sterling Heights, MI, 48314
USA

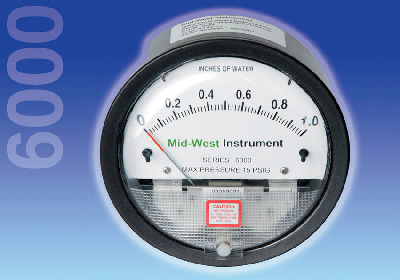

Mid-West Instrument's Low DP Differential Pressure Gauges (Series 6000)
Mid-West Instrument of Sterling Height, Michigan is introducing the series 6000 family of Low Range Differential Pressure Gauges. DP ranges are available from 0-0.25" H2O to 0-20 PSID. Bi-Directional Models are available in 0.25-0-0.25" H2O to 15-0-15" H2O. SWP is (-20"Hg) to 15 PSIG with a 35 PSIG rating for 0-10, 0-15 and 0-20 PSID Ranges. Temperature limits are -20º to 140 ºF (-7 º to 80 ºC). Accuracy ranges from ± 2-4% depending on the DP Range. Materials of construction are aluminum housing, acrylic lens and silicone diaphragm.
Primary applications are:
Monitoring Fan and Blower Pressure
Filter Pressure Drop
Furnace Draft
Flow Measuring in Conjunction with Orifice Plates or Averaging Pitot Tubes
Clean Room DP
|
|
|
|
|
|
|
|
