Gas-Fired Rotary Hearth Oven is rated to 500°F.
December 1, 2011 -
Suited for applications such as preheating and curing powder coatings onto electric motor parts, No. 816 features 54 x 54 x 72 in. workspace and 350,000 BTU/HR installed in modulating gas burner. Recirculating blower (4,200 cfm, 3 hp) provides horizontal airflow to workload, and two 48 in. dia hearths, constructed from rolled angles and covered with perforated metal, carry loads in process. Construction includes with aluminized steel interior and exterior with 4 in. insulated walls.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Grieve Corporation, The
500 Hart Rd.
Round Lake, IL, 60073-2898
USA

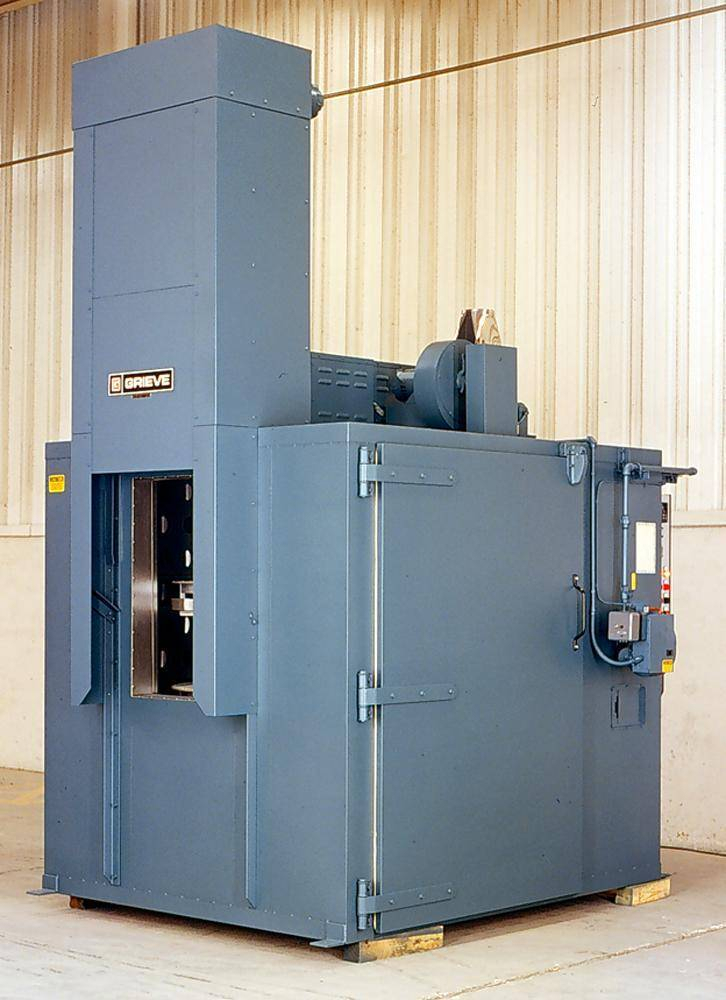

500°F Rotary Hearth Oven from Grieve
No. 816 is a 500°F gas-fired, rotary hearth oven from Grieve, currently used for preheating and curing powder coatings onto electric motor parts. Workspace dimensions on this oven measure 54" W x 54"D x 72"H. 350,000 BTU/HR are installed in a modulating gas burner, while a 4200 CFM, 3 HP recirculating blower provides horizontal airflow to the workload.
This Grieve rotary hearth oven features aluminized steel interior and exterior with 4" insulated walls. Two 48" diameter hearths, constructed from rolled angles and covered with perforated metal, carry the loads in process. Each hearth is designed to rotate for 15 seconds, every time the motor-operated vertical lift door is opened and closed. The hearths are driven by a 1/3 HP motor through a gear reducer with torque limiting device.
All safety equipment required by IRI, FM and National Fire Protection Association Standard 86 for gas-fired equipment are onboard No. 816, including a 325 CFM, 1/3 HP powered forced exhauster.
For more information, please contact: THE GRIEVE CORPORATION, 500 Hart Road, Round Lake, Illinois 60073-2835 USA. Phone: (847) 546-8225. Fax: (847) 546-9210. Web: www.grievecorp.com. Email: sales@grievecorp.com.
|
|
|
|
|
|
|
|
