Gang Tool Lathe incorporates FANUC robot option.
June 20, 2008 -
Prodigy GT-27 has cross slide design and is offered with LR Mate 200iC Robot, featuring 6-axis brakes, single-phase R30-iA Mate Controller, and LR Handling Tool software. Lathe is suited for small parts turning and achieves 300 ipm feed rate and 800 ipm rapid traverse. It is constructed with C-Axis spindle standard, super polymer composite mineral base, and precision components. FANUC robot achieves 5 sec door open-to-door close times, depending on part.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
SNK America Inc.
1800 Howard St., Suite H
Elk Grove Village, IL, 60007
USA

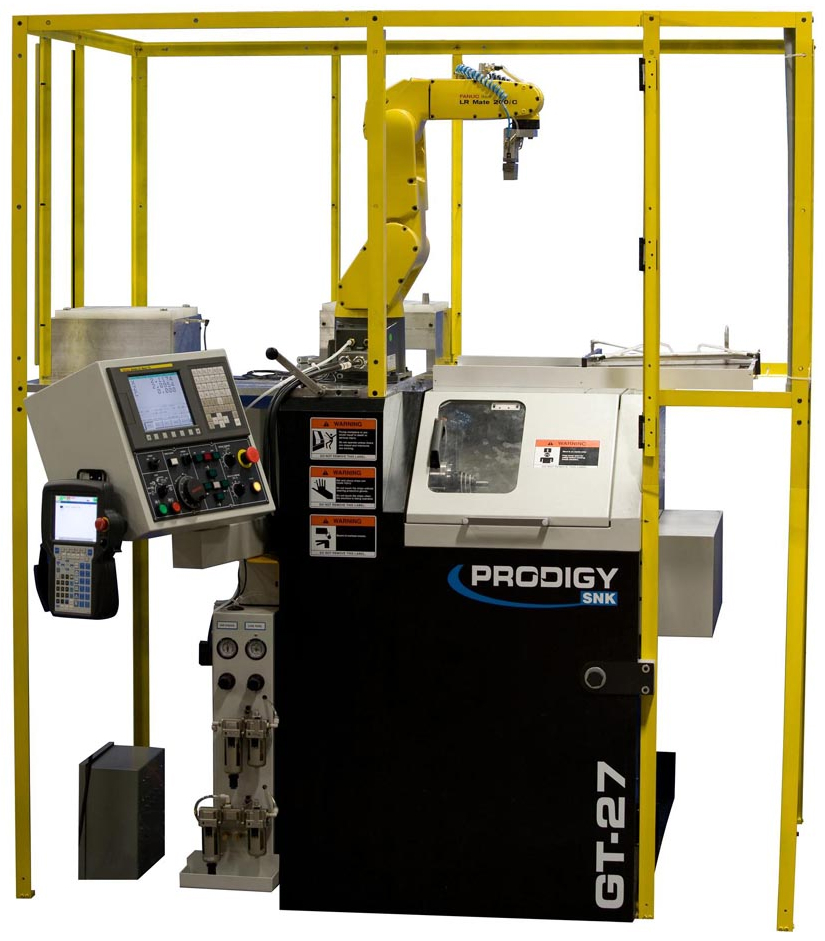

The Prodigy GT-27 Gang Tool Lathe from SNK Now Available with Fanuc Robot Option for Even Higher Productivity
Elk Grove Village, IL - (June 19, 2008) The addition of an optional FANUC robot makes SNK America, Inc.'s fast performing Prodigy GT-27 gang tool lathe even more productive. Engineered for exclusive use with the Prodigy GT-27, the full 6-axis robot achieves five-second door open-to-door close times (part dependent).
For fast and accurate small parts turning, the Prodigy GT-27 features a C-Axis spindle as standard, a super polymer composite mineral base and precision components. Being a gang tool lathe, the Prodigy GT-27 is turret-less, and therefore requires no tool changes for shorter cycle times.
The Prodigy GT-27 lathe uses three axes of motion that can be commanded in absolute or incremental modes. The Prodigy's C-Axis spindle allows for indexing and positioning in .001 degree increments, as well as more advanced functions including interpolation and polar coordinate milling.
Compared to traditional cast-iron or Meehanite casting, the super polymer composite mineral base of the Prodigy GT-27 provides significant vibration reduction and improved surface finish, while extending tool life by up to 40%. The polymer is resistant to oxidants and thermal distortion. The Prodigy GT-27, with its polymer base, weighs in at 3840 lbs. This heavyweight construction provides unmatched rigidity and superior accuracy.
The Prodigy GT-27's cross slide design incorporates a high performance positioning system featuring high preload, angular contact linear bearings using gothic arch configuration, low friction and a precision ground ball screw in a super precision thrust bearing set.
SNK's Prodigy GT-27's GE Fanuc 0i-Mate TC Control contributes to ease of operation, as well as faster and more responsive performance (with the inclusion of brushless digital servo drives). Some features of the controller include a manual pulse generator, cutter path graphics, an LCD color display and a flash card.
The FANUC Robot optional kit includes a LR Mate 200iC Robot with 6-axis brakes, a single-phase R30-iA Mate Controller and LR Handling Tool Software (compliant with new RIA R15.06 safety requirements). Also included in the kit are a double gripper assembly mounted to the robot, two storage racks (each with pockets for 36 parts), protective caging with access doors and more.
Also available as an option, a parts conveyor transports finished parts from the machining area without interrupting production. A basket, configured to accommodate the geometry of the finished product, keeps machined parts separated from chips and cutting fluids.
The Prodigy GT-27's X-Axis travel is 12" and Z-Axis travel is 6.5". Feed rate is 300 ipm and the rapid traverse is 800 ipm. The spindle drive of the Prodigy GT-27 is 7.4 hp, and spindle speeds reach up to 6,000 rpm. The Prodigy GT-27 can perform rigid tapping and can be bar-feed driven. Maximum chuck size is 4", and maximum production bar work is up to 1 1/16" diameter.
The Prodigy GT-27 is ideal for both first and secondary machining operations in a variety of applications, including medical/dental, automotive, aerospace, screw machine, jewelry, commercial, small lot specialty, plastics, ceramics and fasteners. The incorporation of the robot makes the Prodigy GT-27 ideal for production shops, as well as job shops.
For more information, visit our IMTS Booth #A-8432 or www.snkamerica.com, or contact Prodigy Sales at 1 866 379-6068, or SNK America, Inc., 1800 Howard Street, Elk Grove Village, IL 60007, Phone: (847) 364-0801, Fax: (860) 379-6095, E-mail: prodigy@snkamerica.com.
|
|
|
|
|
|
|
|
