Gang Tester has integrated unit-under-test power supply.
May 17, 2011 -
SCANFLEX® SFX-TAP16/G enables users to test or program up to 16 boards in parallel, applying one central SCANFLEX controller. Various test and program strategies are supported, such as Processor Emulation Test, core assisted Flash programming, chip embedded instrumentation, protocol driven interface, as well as Boundary Scan tests. System can be adapted to nearly each kind of unit-under-test interface and Gang numbers and works with SYSTEM CASCON(TM) platform from version 4.5.4 on.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
GOEPEL electronics LLC
9600 Great Hills Trail, Suite 150 W
Austin, TX, 78759
USA

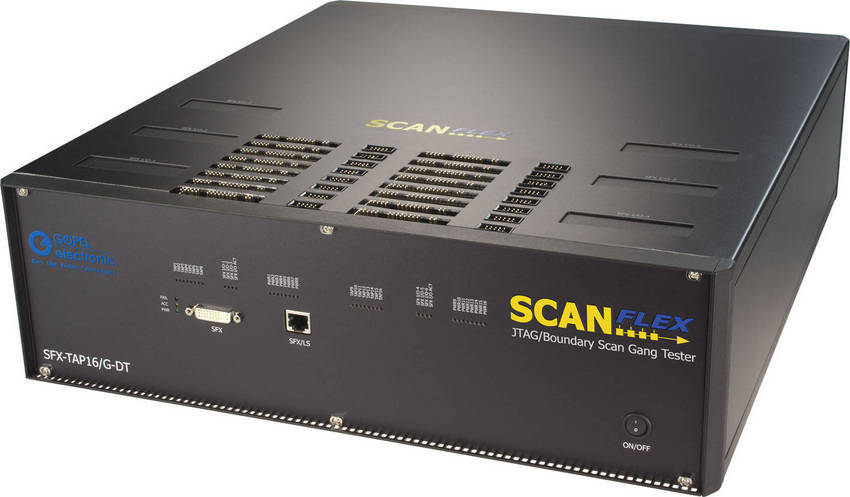

New SCANFLEX® Gang Tester from GOEPEL Electronic Improves Efficiency during Boundary Scan Utilization in the Mass Production
GOEPEL electronic introduces SFX-TAP16/G, the worldwide first completely modular Gang test system with integrated UUT power supply. Without any additional hardware, users are now able to test or program up to 16 boards in parallel, applying only one central SCANFLEX® controller. Based on this innovative architecture, highly compact and cost-efficient Gang test applications can be implemented. The system utilisation also increases efficiency in the production at significantly reduced manufacturing costs.
SFX-TAP16/G can be open configured, supporting numerous modern test and program strategies such as Processor Emulation Test (PET), core assisted Flash programming, chip embedded instrumentation and protocol driven interface tests as well as Boundary Scan.
"We wanted to meet the increasing demand of mass markets such as Automotive or Consumer for even more compact and open scalable Boundary Scan Gang testers by a completely new hardware architecture. And we've been successful", says Thomas Wenzel, Managing Director of GOEPEL electronics' Boundary Scan Division. "Simultaneously, we elevated our SCANFLEX hardware platform to the top in its field for Gang test and programming."
The new TAP transceiver's concept is based on modularly configurable TAP Slot Cards (TSC) and Power Slot Cards (PSC). By this, the system can be freely adapted to nearly each kind of UUT interface and Gang numbers. Investments are protected by the hardware's exchangeability and upgradeability.
The number of TAPs on the UUT may vary between eight (2 UUT) and one (16 UUT). The Power Slot Cards enable the individual power supply per UUT, monitoring the power consumption and feature isolating relays. In addition to solutions for TSC and PSC, GOEPEL electronic provides engineering services to develop project specific modules and turnkey Gang testers. SFX-TAP16/G is also available as a pure kit without housing for integrations on customers' sites.
SFX-TAP16/G can be freely combined with all SCANFLEX® controllers supporting PCI, PCI Express, PXI, PXI Express USB, GBit LAN, FireWire or LXI, whereby the distance can be up to five meters. The new Gang testers are fully supported in the industrially leading JTAG/Boundary Scan platform SYSTEM CASCON(TM) from version 4.5.4 on.
About GOEPEL electronic:
GOEPEL electronic is a worldwide leading vendor of professional JTAG/Boundary Scan solutions and technology innovator of IP based instrumentation. With more than 100 product launches the company became the biggest innovator in the market within the last five years. A network of branch offices, distributors and service partners ensures the global availability of the products as well as the support of the more than 7,000 system installations. Founded 1991 and headquartered in Jena, Germany, GOEPEL electronic employs currently about 170 employees and generated a revenue of more than 21 Million Euro in 2010 (ca. $16.5 Mio). GOEPEL electronic has continuously been ISO9001 certified since 1996 and has been honoured with TOP-JOB and TOP-100 awards for being one of the best medium-sized companies in Germany. GOEPEL electronic's products won several awards in recent years and are used by the leading companies in telecommunication, automotive, space and avionics, industrial controls, medical technology, and other industries. Further information about the company and its products can be found on the internet at www.goepel.com.
