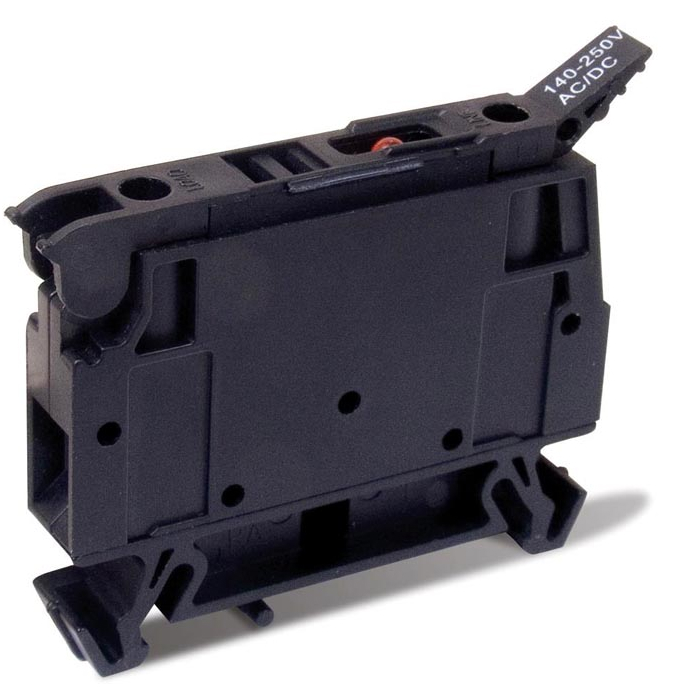

Fuse Terminals made 1.55 in. high for use in cabinets.
June 26, 2007 -
WSI 4 Seies fuse terminals protect power supplies and additional critical loads in electrical cabinets. Low-profile terminal offers 2.5 mm² screw clamping system, accepts standard 5 x 20 mm fuse, and provides blown fuse indication across 10-250 V range. WSI 4 fuse terminals implement short-circuit and overload protection for process and industrial applications. 300 V UL rated terminals can be ganged together, and mount on TS-35 DIN rails.
(Archive News Story - Products mentioned in this Archive News Story may or may not be available from the manufacturer.)
Original Press release
Weidmuller, Inc.
821 Southlake Blvd.
Richmond, VA, 23236
USA
New Low-Profile Fuse Terminals from Weidmuller
RICHMOND, VA (May 3, 2007) - Weidmuller introduces another new low-profile fuse terminal for implementing short-circuit and overload protection for process and industrial applications. At only 1.55" (39.4mm) high, the WSI 4 fuse terminal is ideal for use in electrical cabinets to protect power supplies or additional critical loads.
The WSI 4 fuse terminal features a standard 2.5mm2 screw clamping system (22 . . . 12 AWG), and accepts a standard 5x20 mm fuse. Various LED options provide blown fuse indication across a voltage range of 10-250V. These fuse terminals can be ganged together by means of an interlocking disconnect lever, which provides a quick and easy method to disengage a two- and three-phase application.
Weidmuller's new WSI 4 fuse terminal is UL rated for 300V, 15A, and mounts on TS-35 DIN-rails. The large marking area accommodates Weidmuller's standard WS and DEK markers.
Weidmuller is a leading supplier of control and automation connectivity solutions such as Industrial Ethernet Solutions, Power Delivery Solutions, Design-Build-Deliver Solutions, Complete Rail Solutions, switching technology for control panels, printed circuit board terminals and connectors, and terminal blocks. Weidmuller has approximately 3,400 employees worldwide, with 70 sales organizations or offices in more than 60 countries.
Weidmuller 821 Southlake Blvd. Richmond, Virginia 23236 Phone: (804) 794-2877 FAX: (804) 379-2593
|
|
|
|
|
|
|
|
